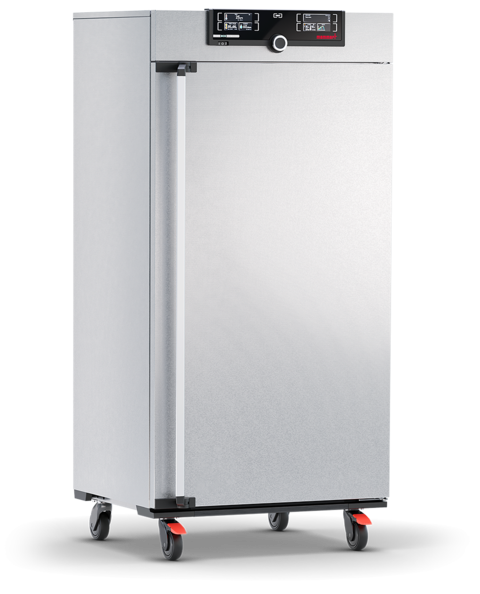

MEMMERT HPP410eco Constant Climate Chamber (384L)

Volume: 384 litres

Interior dimension: 640W x 1200H x 500D mm

Exterior dimension: 824W x 1720H x 655D mm

Stainless steel grids: 2

Max. number of internals: 14

Setting temperature range without light, with humidity: +5 to +70°C

Setting temperature range with light, with humidity: +5 to +70°C

Setting temperature range with light, without humidity: 0 to +70°C

Setting temperature range without light, without humidity: 0 to +70°C

Working temperature range with light, without or with humidity: 15 to +40°C

Working temperature range without light, with humidity: +5 (at least 20 below ambient temperature) to +70°C

Working temperature range without light, without humidity: 0 (at least 20 below ambient temperature) to +70°C

Setting accuracy temperature: 0.1°C

Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Setting range humidity: 10-90% RH

Humidity supply with distilled water from external tank by self-priming pump

Humidification by hot steam generator

Dehumidification by cold trap using the Peltier technology

Setting accuracy humidity: 0.5% RH

ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

Adjustable parameters: temperature (Celsius or Fahrenheit), relative humidity, programme time, time zones, summertime/wintertime

Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %

Function SetpointWAIT: the process time does not start until the set temperature is reached

Calibration: three freely selectable values each, temperature and humidity

Interface: Ethernet LAN, USB

Programme stored in case of power failure

Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Temperature control: over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display

AutoSAFETY: additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature

Integral fault diagnostics for temperature and humidity control

Alarm: visual and accoustic

Energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)

Door fully insulated stainless steel door with 2-point locking (compression door lock)

Voltage: 230V, 50/60Hz

Electrical load: approx.700W

Ambient temperature: 16°C to 40°C

Humidity: max. 70 %, non-condensing
