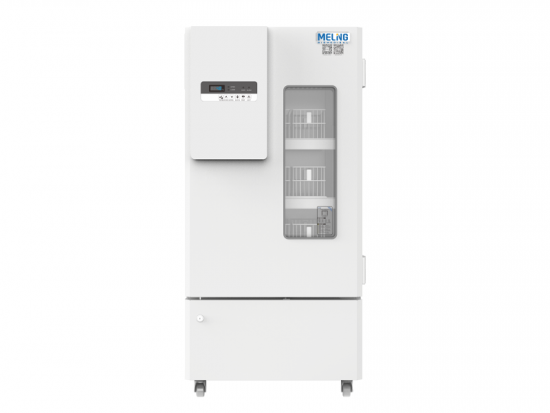

MELING XC-170L Blood Bank Refrigerator (4℃, 170L)

Cabinet Type: Upright

Capacity(L): 170

Internal Size(W*D*H)mm: 525*550*744

External Size(W*D*H)mm: 654*774*1330

Pakage Size(W*D*H)mm: 700*837*1492

NW/GW(Kgs): 106/135

Temperature Range: 2~6℃

Ambient Temperature: 16-32℃

Climate Class: N

Controller: Microprocessor

Display: Digital display

Compressor: 1pc

Cooling Method: Air cooling

Defrost Mode: Automatic

Refrigerant: R290

Insulation Thickness(mm): R/L:55,U:55,B:50

External Material: PCM

Inner Material: Stainless steel

Drawers: 3(coated steel wired shelf)

Door Lock with Key: Yes

Access Port: 1pc. Ø 25 mm

Casters: 4（2 casters with brakes)

Data Logging/Interval/Recording Time: USB/Record every 10 minutes / 2 years

Backup Battery: Yes

TemperatureHigh/Low temperature,High ambient temperature

Electrical: Power failure , Low battery

System: Sennor failure,Door ajar,Condenser overheating,Built-in USB datalogger failure,Communication error

Options: Charter recorder

Standard: RS485,Remote alarm contact
