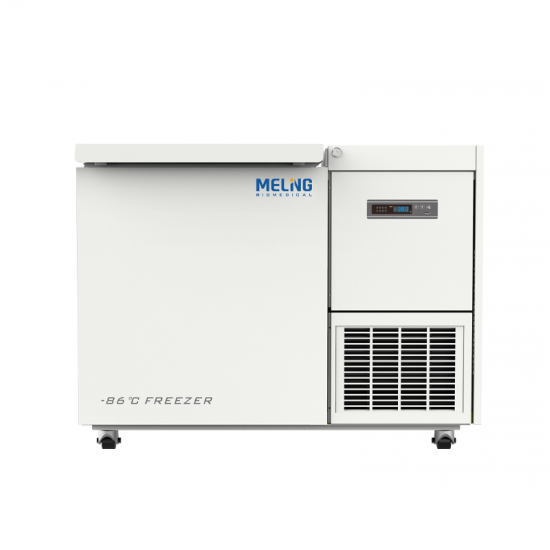

MELING DW-HW138 Ultra Low Temperature Freezer (-86°C, 138L)

Capacity (L): 138

Internal Size (W*D*H)mm: 490*470*582

External Size (W*D*H)mm: 1328*890*1025

Package Size (W*D*H)mm: 1470*990*1241

NW/GW (Kgs): 200/262

Temperature Range: -40 ~ -86°C

Ambient Temperature: 16 ~ 32°C

Cooling Performance: -86°C

Climate Class: N

Controller: Microprocessor

Display: Digital display

Compressor: 1pc

Cooling Method: Direct Cooling

Defrost Mode: Manual

Refrigerant: Mixture gas

Insulation Thickness (mm): 152

External Material: Cold rolled steel sheet

Inner Material: Stainless steel

External Door: 1 (Steel plate with spraying)

Door Lock with Key: Yes

Foaming Lid: 2

Access Port: 1pc. Ø 40 mm

Casters: 4

Data Logging/Interval/Recording Time: USB/Record every 10 minutes / 2 years

Backup Battery: Yes

Standard: RS485, Remote alarm contact

Options: CO2 backup system
