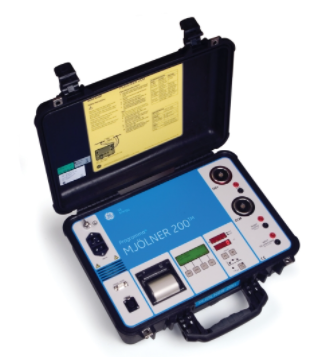

MEGGER MJOLNER 200 MICROHMMETER

Operating temperature: - 20 ° C to 50 ° C

Humidity: 5% - 95% Rh

Standard: IEC61010-1: 2010

Range: 0 - 999.9 mΩ

Resolution: 0.1 µΩ under 1.0 mΩ

1 µΩ below 10 mΩ

10 µΩ below 100 mΩ

100 µΩ below 1000 mΩ

Accuracy, 50-200 A Typ ± 0.3 µΩ, Max. ± 0.6µΩ, 10 - 40ºC, R <1 mΩ

Output voltage: 5.25 V

Output current: 200A

Load capacity up to 2 minutes. ON, 10 minutes. OFF at 25oC (77oF) ambient temperature and full load (25 mΩ at 100 A)

Power supply voltage 100-240 V AC, 50/60 Hz

Power consumption 13 A at 100 V, 6 A at 230 V

Protect Thermal fuse, software

470 x 357 x 176 mm (18 ”x 14” x 7 ”)

Weight 8.8 kg (19.4 lbs)
