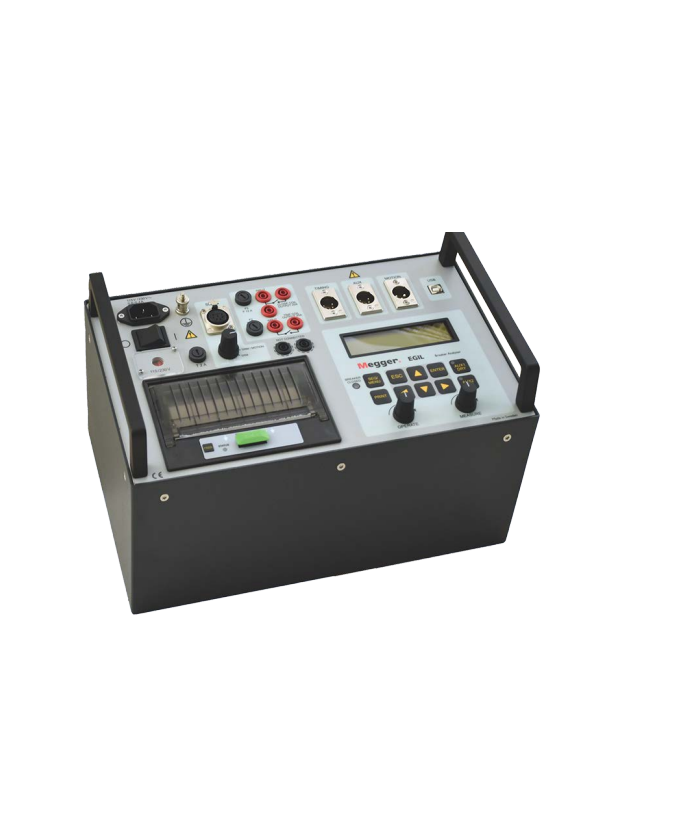

MEGGER EGIL Circuit Breaker Analyzer (±25 A /channel, 1~100 s)

General

Mains voltage: 115/230 V AC (switchable), 50/60 Hz

Power consumption|: 100 VA (max)

Dimensions

Instrument: 354 x 210 x 181 mm (13.9” x 8.3” x 7.1”)

Transport case: 528 × 368 × 190 mm (20.8” x 14.5” x 7.5”)

Weight

Instrument: 5.9 kg (13.0 lbs)

Transport case: 3.4 kg (7.5 lbs)

Display: LCD

Available languages: English, German, French, Spanish, Swedish

Measurement section

Time measurement

Measurement time: 1 to 100 s

Resolution: 0.1 to 10 ms

Number of channels: 3 with common ground

Time base inaccuracy: 0.05% of the reading ± resolution

Status thresholds

Closed < 10 Ω ±20%

Resistor 10 Ω ±20% to 3 kΩ ±20%

Open > 3 kΩ ±20%

Open circuit voltage: 24 V ±20%

Short circuit current: 100 mA ±20%

AUX 1&2

Number of channels: 2, galvanically isolated

Contact-sensing (Dry)

Status thresholds

Closed < 600 Ω ±30%

Open > 600 Ω ±30%

Open circuit voltage: 20 V ±20% DC

Short circuit current: 25 mA ±20%

Voltage sensing (Wet)

Status thresholds

Open indication: < 8 V (polarity insensitive)

Close indication: > 13 V (polarity insensitive)

Working voltage: 250 V AC/DC

Current measurement

Range: ±25 A per channel

Resolution: 25 mA

Inaccuracy: 1% of the reading ±100 mA

Working voltage: 250 V AC/DC

Breaker operation

Sequences: C, O, C-O, O-C, O-C-O

Continuous current: 5 A

Max current: 25 A during 300 ms, rest time 1 min

Contact function: Two independent control functions

Contact characteristics: Non bouncing, closing time max. 0.1 ms

Make/Break capacity: 25 A, 250 V (AC or DC) per contact function

Start breaker operation: by rotary switch

Pulse length: Adjustable in steps of 10 ms

Pulse delay: Adjustable in steps of 10 ms

Working voltage: 250 V AC/DC
