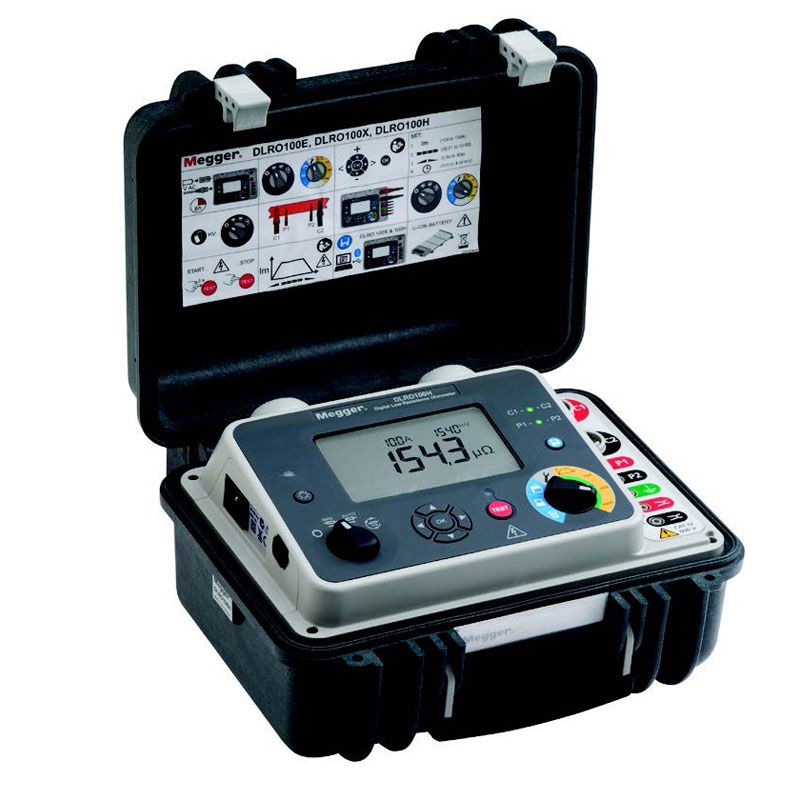

MEGGER DLRO100EB-LG1-P1 Digital Low Resistance Ohmmeter

Measurement range:0.1 μΩ - 1.999 Ω

Resolution:0.1 μΩ

Noise rejection:Differential 100 mV @ 50-60 Hz on test leads

DC output:Smooth DC

IP rating:IP54 Open / IP65 Closed

Operating temperature range:-4°F up to +122°F (-20°C up to +50°C)

Storage temperature range:-22°F up to +158°F (-30°C up to +70°C)

Humidity:<85% R.H. non-condensing

Battery life:200 single 100 A tests or up to 2x 10 minutes continuous 100 A output

Battery type:User replaceable Li-ion battery pack

Battery charge time:Full charge in 2.5 Hrs from flat

Maximum output voltage:2 V (battery), 3 V (a.c.)

EMC:IEC61326-1

Safety:IEC61010

CAT IV 600 VAC / 500 VDC up to 2000 m

CAT IV 300 V up to 4000 m

Dimensions:16 x 12 x 8 in. (400 x 300 x 200 mm)

Weight:Mains only: 15.4 lb (7.0 kg)

With battery: 17.4 (7.9 kg)

ACCESSORIES INCLUDES:

- 1004-448: DLRO100 CAT IV 600V std LEAD SET 5M.

- 1005-634: LEAD SET HIGH CURRENT 200A KELVIN

- 1005-622: MCPD 100L - DC CURRENT PROBE
