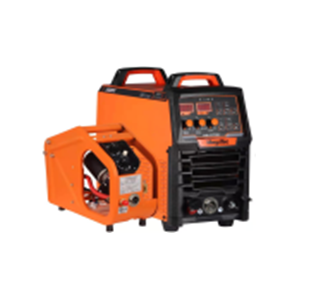

Megatec MIG-270D Inverter Arc Weldering Machine (9- 11KVA, 30-270A)

Input Voltage:

Single Phase 220V / 50–60Hz

Three Phase 380V / 50–60Hz

Power Consumption: 9 – 11 kVA

Welding Capabilities:

MIG Welding Current: 30 – 270A

Wire Diameter: Ø0.8 – 1.2mm

MMA (Stick) Welding Current: 15 – 250A

Electrode Size: Ø1.6 – 3.2mm (70% duty cycle)

Welding Modes: MAG, MIG, MMA (3-in-1 Function)

Aluminum Welding: Supported

MIG Pulse Mode: Available

2T/4T Trigger Function: Available

Weight: 14 kg

Dimensions: 486 × 228 × 403 mm

Accessories Included:

5m external wire feeder

3m QDB-200 MIG welding torch

2m grounding clamp

CO₂ regulator included
