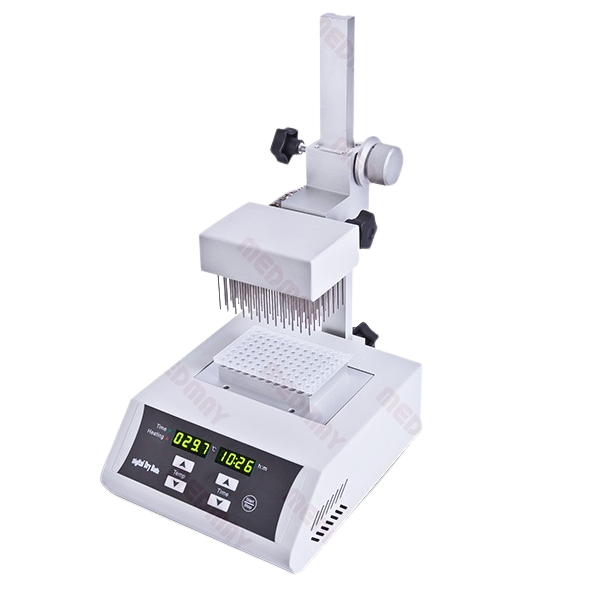

Medmay MSN-200-1A Sample Concentrator (400W; 96-gas-needles)

Temp. Control Range: R.T.+5℃ ~150℃

Temp. Setting Range: 5℃ ~150℃

Temp. Stability@40~100℃: ≤±0.5 ℃

Temp. Stability@100~150℃: ≤±1 ℃

Block Temp. Uniformity@100℃: ≤±0.5 ℃

Block Temp. Uniformity@150℃: ≤±1 ℃

Temp. Display Accuracy: 0.1 ℃

Heating Speed: ≤30min (40℃ to 150℃)

Time Range: 1min ~99h59min or continuous

Air cavity Max. Lift Stroke: 275mm

Gas-in Joint Outer Diameter: Φ7mm

Nitrogen Pressure: ≤0.1MPa

Nitrogen Flow Rate: 0 ~10L/min

Needle Length: 80mm

Sample Capacity: 1 Standard Plate Block

Voltage: AC 220V / AC 110V, 50/60Hz

Power: 400W

Fuse: 250V, 3A/6A, Ф5×20

Dimension (WxDxH): 220 x 260 x 445mm

Net Weight: 5.5kgs
