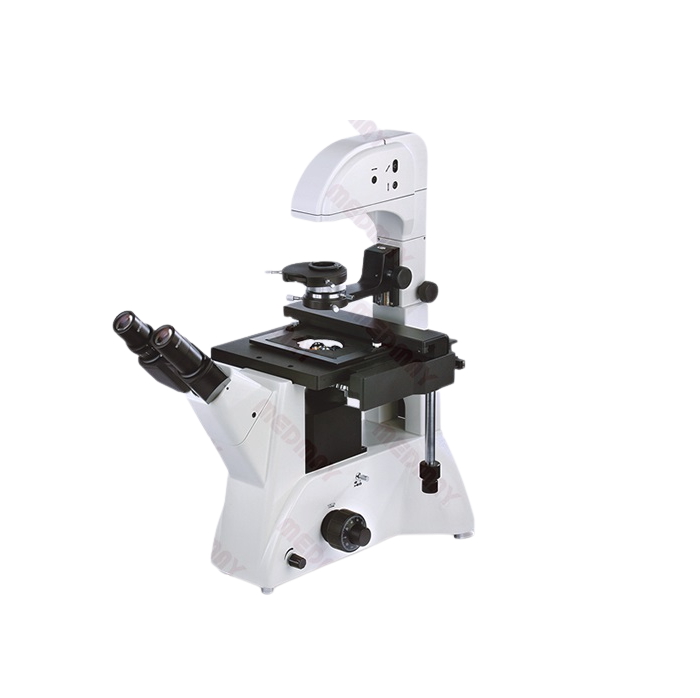

Medmay MMIC066 Inverted Microscope (10X, 20X, 40X)

Objective: Long working distance plan achromatic objectives: 10X, 20X, 40X;

Phase contrast objective: 10X

Eyepieces: Wide field WF10X (Φ22mm); Centering telescope

Viewing head: Inclination angle is 45˚ and interpupillary distance is 53~75mm

Nosepiece: Quintuple nosepiece

Stage: Fixed stage overall size is 227mm×208mm, Mechanical moving device, moving range is 77mm (longitudinal)×114mm (transverse)

Focusing: Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm

Condenser: Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit

Illumination: 6V 30W halogen, brightness enable control
