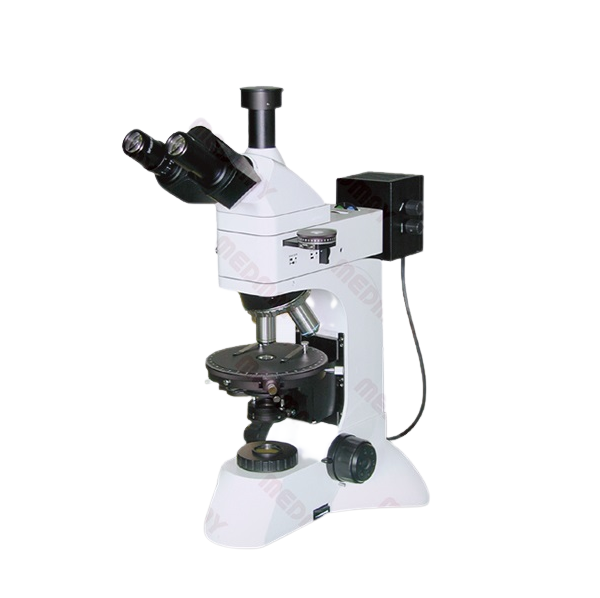

Medmay MMIC062 Polarizating Microscope (5X~60X)

Objective: Strain-free plan achromatic objectives: 5X, 10X, 40X (S), 60X (S)

Eyepieces: Wide field WF10X (Φ22mm); Dividing eyepiece (field number: Φ22mm) 0.10mm/Div

Viewing head: Trinocular is inclined 30˚ and enable to shoot in 100% light flux

Nosepiece: Quadruple (the center of objective is adjustable)

Stage: Rotatable stage, diameter Φ150mm, 360° graduated (in 1° increments), minimum vernier division is 6', center adjustable and with tightener

Focusing: Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm

Condenser: Abbe condenser N.A. 1.25 rack & pinion adjustable

Illumination: Reflected illuminating system, blue filter, frosted filter, 6V 30W halogen lamp, brightness adjustable
