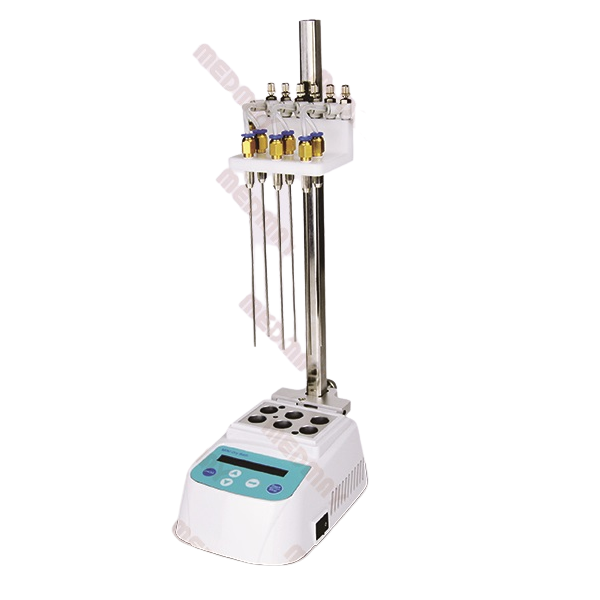

Medmay MINI-100N Mini Sample Concentrator (R.T. + 5℃ -100℃)

Temp. Range: R.T.+5℃—100℃

Heating Time: ≤12min (From 40℃ to 100℃)

Temp. Accuracy (40~100℃): ±0.5℃

Temp. Accuracy (100~150℃): ±1℃

Temp.Stability (100℃): ±0.5℃

Blocks Quantity: 1 Block

Time Range: 1s ~ 999s or 1min ~ 999min

Nitrogen Flow Rate: 0—10L/min

Nitrogen Pressure: ≤0.1MPa

Power: 60W

Dimensions(W×D×H): 110 x156 x 400 mm

Blocks Selection: Refer to “Exchangeable blocks”

Blocks can be optional and exchanged.Optional flow regulating valve.

Cat# : Tube Quantity & Dia.of hole

MiniP-C: 6 x φ15mm

MiniP-D: 6 x φ16mm

MiniP-F: Customized
