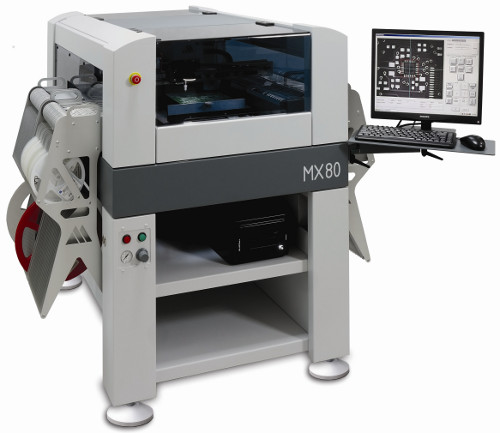

Mechatronika MX80 Pick and Place System with Vision (325 × 500 mm)

PCB: Placement area 325 × 500 mm

Feeders: 80 feeders for 8 mm tapes + 30 sticks of SO8 – SO16

Components: Range from 0201 to 40 × 40 mm, pitch up to 0.4 mm

Component Packing: Tapes 8–44 mm, sticks SO8–PLCC84, trays, bulk / loose components

Placement Rate: 3200 – 4000 cph

Placement Accuracy: Better than 0.08 mm

Nozzle Changer: Automatic, 8 nozzles with automatic sensing of nozzle presence

XY Resolution: 5 µm (linear encoders as standard)

Vision System: Automatic fiducial correction, bad mark sensing, touchless component centering

Angle Resolution: 0.05°

Control Panel: LCD 17’’ screen with keyboard and mouse

Options: CAD data import, tape strips feeder

Dimensions & Weight: 900 × 1250 × 1230 mm, 250 kg

Power Supply: 230 V, 50 Hz, 400 W

Compressed Air Supply: 0.6 MPa, 20 l/min

Vision Centering

Fully automated placing

Automatic fiducials correction and bad mark sensing

Automatic change of nozzles

Pick & Place data can be entered manually in TEACH-IN mode or can be converted from various CAD data systems good price to performance ratio
