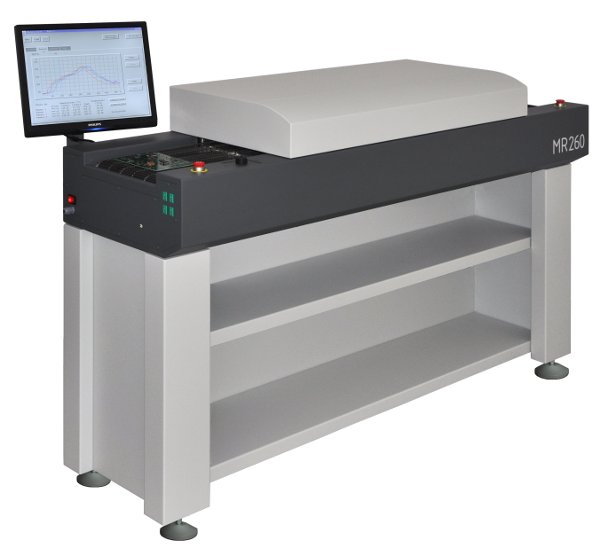

Mechatronika MR260 Forced air convection reflow oven

Power requirements: 208/240VAC 1-phase

Rated power max.: 3800 Watts

17" LCD

Dynamic warming-up control ensuring stable temperaturesand virtually no overshoot.

USB port for external storage.

Profiling software for temperature data recording.

Graphic display mode for viewing temperature on a time base.

3 heating zones, one cooling zone.

Stainless steel mesh conveyor belt

Conveyor speed: 5 - 800 mm/min (0.2 - 31.5 inch/min)

Up to 280° C for lead free soldering.

Clearance for assemblies up to 25mm (1 inch)

Soldering width: 260 mm (10 inch)

Length process chamber: 900 mm (35 inch)

Heat-up time: approx. 15 min.

Dimensions: 1650 x 500 x 360 mm (L x W x H)

Net weight: 80 kg

Forced air convection heat to maximum temperatures up to 280°C.

Forced air convection provides uniform heating and prevents shadowing.

Three heating zones, one cooling zone; each independently controlled for accurate temperature profiles.

Digital PID regulators ensuring high stability of each zone temperature.

Output to external storage device for print-out program data and temperature profiles.

4-channel PCB temperature registration
