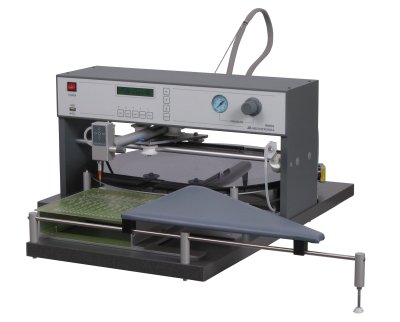

Mechatronika MM600 Semi-automatic Pick and Place System (240 × 280 mm)

PCB: Placement area 240 × 280 mm

Component Feeder: Bulk material (automatically indexed carousel feeder with 45–90 compartments), manual indexed tape feeders (option), automatic tape feeders (option)

Placing: Component positioning by ACCUPLACE targeting system

Options: Automatic tape feeders, manually indexed tape feeders, data transfer from CAD

Dimensions & Weight: 590 × 810 × 350 mm, 20 kg

Power Supply: 230 V, 50 Hz, 25 W

Air Supply: 0.6 MPa

Semi-Automatic And Manual Mode

Accuplace System Ensures Reliable Components Placing

45- Position Carousel Feeder

Built-In Microprocessor Control Unit With Usb Port For Attaching Data Storage Devices

Teach-In Programming Or Data Transfer From Cad

Interface For Mechatronika Automatic Tape Feeder Blocks

Good Price To Performance Ratio
