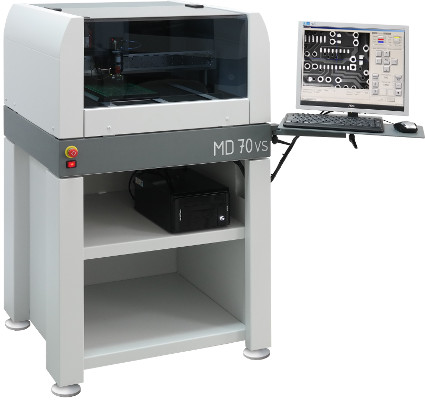

Mechatronika MD70vs Liquid Dispensing System (380 × 540 mm)

Working Area: 380 × 540 mm

X, Y Axes Resolution: 5 µm (linear encoders as standard)

Dispensing Rate: Up to 10000 dots per hour

Vision System: Automatic fiducial correction, automatic bad mark recognition

Control Panel: 17" LCD monitor with keyboard and mouse

Options: Data import from CAD

Dimensions & Weight: 750 × 670 × 520 mm, 70 kg (140 kg including stand)

Power Supply: 230 V, 50 Hz, 200 W

Air Supply: 0.6 MPa, 20 l/min

Fully automated dispensing

Integrated vision system for Teach-in mode programming, automatic fiducial correction and bad mark recognition

Precise needle height adjustment

Built-in needle thermostat for reliable paste and liquids dispensing

Linear encoders for high accuracy and repeatability

Easy to use Microsoft Windows 10 based control system with third party CAD text files import capability for increased productivity

Excellent price to performance ratio and low TCO
