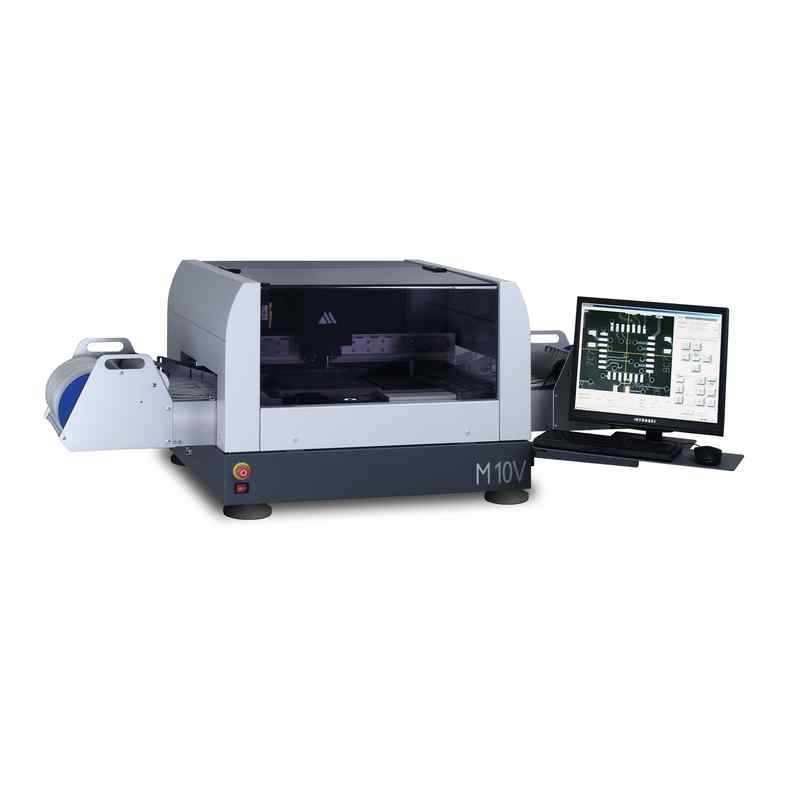

Mechatronika M10V Pick and Place System with Vision (300 × 400 mm)

PCB: Placement area 300 × 400 mm

Feeders: Max 40 feeders (8 mm tapes) or 32 feeders (8 mm tapes) + 20 sticks (SO8)

Components: Range from 0201 to 40 × 40 mm

Pitch: Up to 0.5 mm

Component Packing: Tapes (8, 12, 16, 24, 32, 44 mm); Sticks (SO8–PLCC84); Trays; Bulk / loose components

Placement Rate: 1200 – 1600 cph

Placement Accuracy: Better than 0.08 mm

Nozzle Changer: Automatic, 8 nozzles

Nozzle Detection: Automatic sensing of nozzle presence

XY Resolution: 5 µm (linear encoders as standard)

Vision System: Automatic fiducial correction; Automatic bad mark sensing; Automatic bulk component feeding; Touchless component centering

Angle Resolution: 0.05°

Control Panel: 17’’ LCD screen, keyboard, mouse

Options: CAD data import; Dispensing head (glue/paste); Tape strips feeder; Bulk / loose components feeder

Dimensions & Weight: 750 × 830 × 550 mm; 70 kg

Power Supply: 230 V, 50 Hz, 400 W

Compressed Air Supply: 0.6 MPa, 20 l/min

Vision Centering

Fully automated placing

Automatic fiducials correction and bad mark sensing

Automatic change of nozzles

Automatic feeding of bulk / loose components

Pick & Place data can be entered manually in TEACH-IN mode or can be converted from various CAD data systems

Good price to performance ratio
