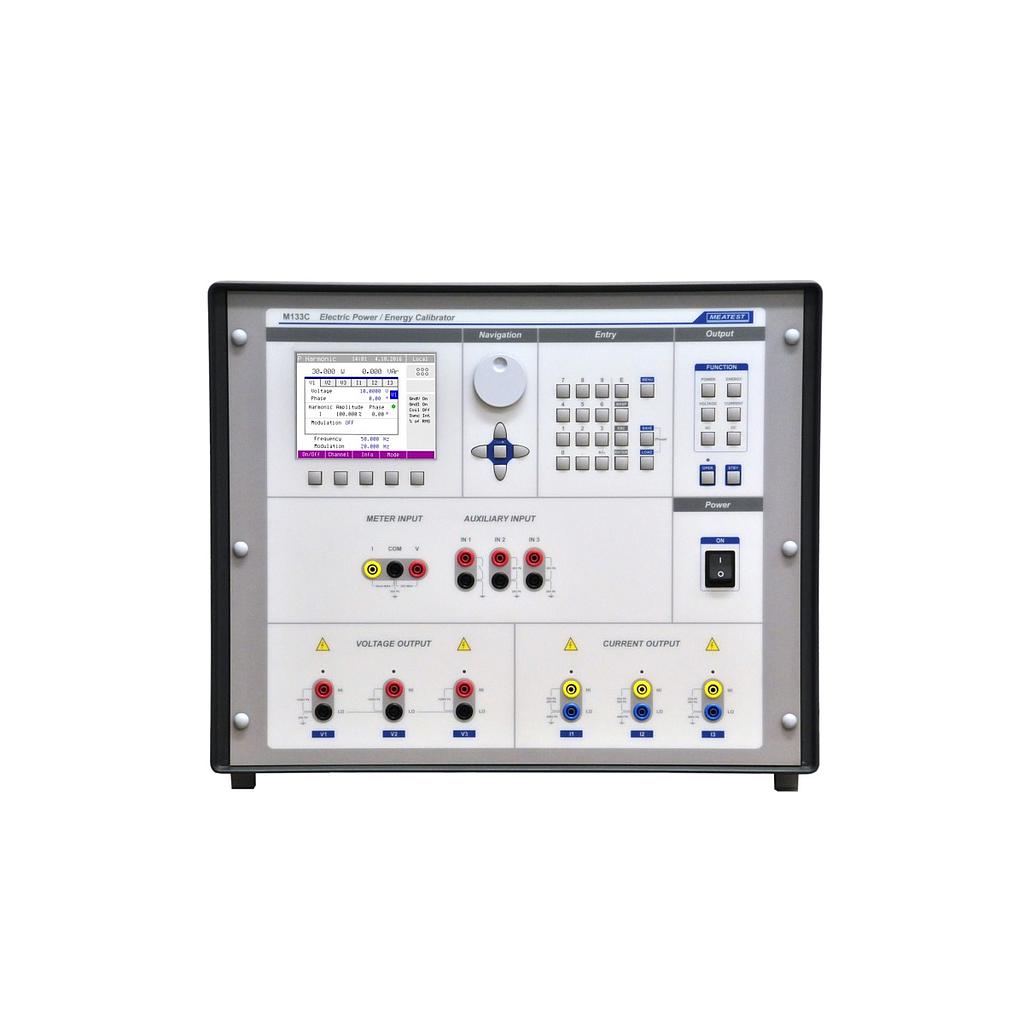

MEATEST M133Ci 1F Power & Energy Calibrator

DC voltage: 1 - 280 V

± 150 ppm / year

AC voltage: 1 - 600 V, 15 - 1000 Hz

± 150 ppm / year

DC current: 5 mA - 30 A (1500 A with 140-50 Current Coil)

± 250 ppm / year

AC current: 5 mA - 30 A, 15 - 1000 Hz (1500 A with 140-50 Current Coil)

± 250 ppm / year

DC Power & Energy: 5 mW - 8.4 kW (420 kW with 140-50 Current Coil)

0.1 s - 3 years

± 440 ppm / year

AC Power & Energy: 5 mW - 18 kW, 15 - 1000 Hz (900 kW with 140-50 Current Coil)

0.1 s - 3 years, power factor -1 to +1

± 440 ppm / year

Process Multimeter

DC voltage: 0 - 12 V

± 100 ppm / year

DC current: 0 - 25 mA

± 100 ppm / year

Frequency: 1 Hz - 15 kHz

± 50 ppm / year

Accessories: Current Coil 140-50, Adapter 110
