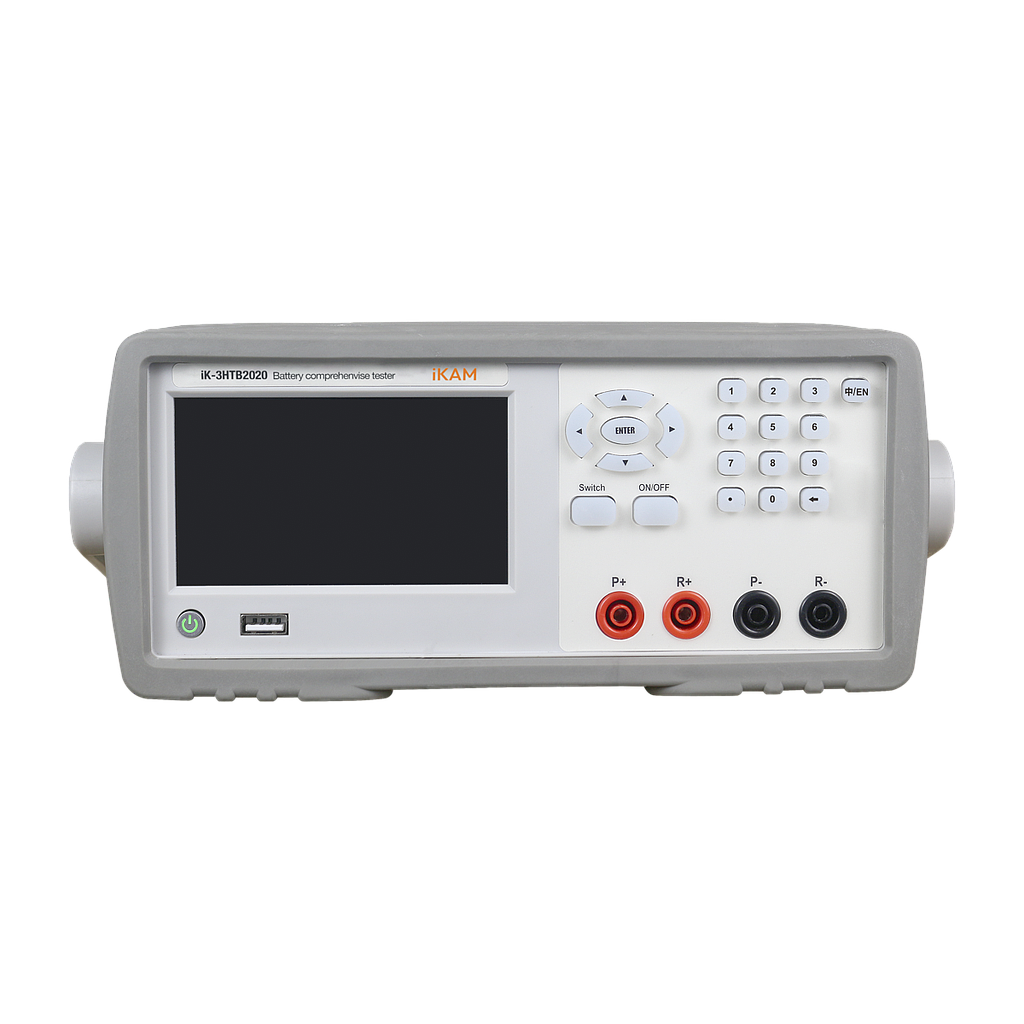

iKAM iK-3HTB2020 Battery integrated tester (20V; 10A; 999mΩ)

Instrument applicable environment: Temperature: 0~40℃; Usage altitude: within an altitude of 2Km use; Relative humidity: 40~80%

Battery voltage measurement range: 0~20.000V, resolution 0.001V

Overcurrent measurement range: 0~10.000A, resolution 0.001A

Internal resistance measurement range: 2mΩ~999mΩ, resolution 0.1mΩ

Resistance identification range: 0.1~999.9KΩ, with a minimum resolution 0.1KΩ

Capacity measurement range: 100mAh~100.0Ah,with a minimum resolution 0.1mAh

Static testing speed: 1.1~2 seconds

Capacity test time (1C charge/discharge): 3~4 hours

Voltage measurement accuracy: ±(result ×0.5% +3mV)

Current measurement accuracy: ±(result ×0.5% +5mA)

Internal resistance accuracy: ±(result ×1% +1mΩ)

Resistance identification accuracy: 10KΩ ±1%

Battery capacity accuracy: 10Ah ±2%

Output maximum voltage: 20V

Output maximum current: 2A

Maximum output power: 40W

Maximum discharge voltage: 20V

Maximum discharge current: 5A

Maximum power: 50W

Ripple voltage: <20mV

Load adjustment rate: <10%

Response time: 1S
