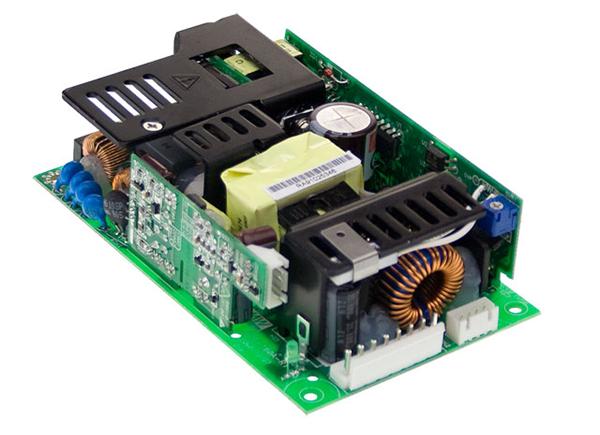

MEAN WELL RPT-160A Switching Power Supplies 5V14A 12V5.5A -5V1A 145W, ACTIVE PFC

Width: 76.2 mm (3 in)

Height: 34.29 mm (1.35 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Approvals: EN60601-1, EN60950-1

Compliance: EN60601-1, EN60950-1

Unit Weight: 330 g

Output Power: 98.6 W, 145 W

Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 3 Output

Power - Convection: 98.6 W

Power - Forced Air: 145 W with 20 CFM

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 14 A

Output Current-Channel 3: 1 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 5 VDC
