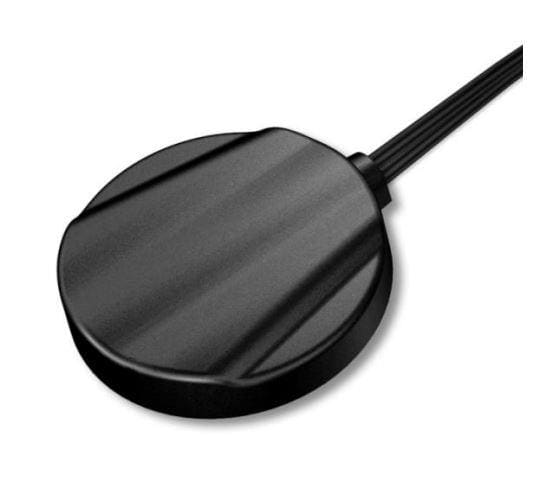

Maxtena MEA-GNSS-LTE MIMO Active Multi-Frequency Antenna External GPS, GLONASS, LTE

Gain: 1 dBi, 1 dBi, 1 dBI, 2 dBi, 2 dBi

VSWR: 2:1, 3.7, 3.5 , 3

Style: Puck

Width: 39 mm

Height: 1.4 mm

Length: 48 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 M RG174/U

Application: Asset Tracking, Telematics, Container, Logistics, Automotive, Industrial Applications, IoT Applications

Unit Weight: 40 g

Cable Length: 1 m

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 1.57541 GHz, 1.602 GHz, 829 MHz, 1.94 GHz, 2.495 GHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA / FAKRA

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
