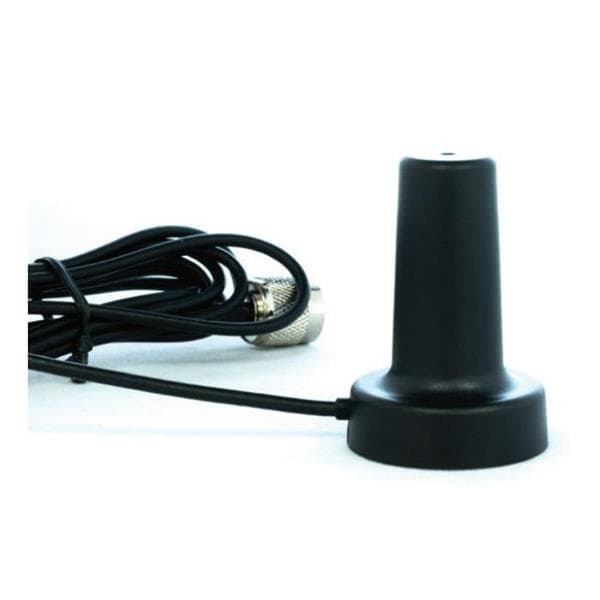

Maxtena M1621HCT-EXT-1 Passive Antenna IRIDIUM EXTERNAL MAGNET MOUNT ANTENNA with TNC connector

Gain: 1 dBic

VSWR: 1.5

Style: Straight with Base

Length: 52.2 mm

Diameter: 36 mm

Bandwidth: 30 MHz

Impedance: 50 Ohms

Cable Type: 1500 mm LRM100

Application: Vehicle Tracking, Fleet Tracking, Military, Security, Asset Tracking, PDAs, Laptops, Oil & Gas Industries, Navigation Devices, Mining Equipment, LB2 Applications, M2M Applications, Iridium

Unit Weight: 299.376 g

Cable Length: 1500 mm

Polarization: RHCP

Mounting Style: Magnetic Mount

Number of Bands: 1 Band

Center Frequency: 1.621 GHz

Mechanical Style: Helical

Maximum Frequency: 1.626 GHz

Minimum Frequency: 1.616 GHz

Termination Style: Connector

Antenna Connector Type: TNC Male

Protocol - GPS, GLONASS: Iridium

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
