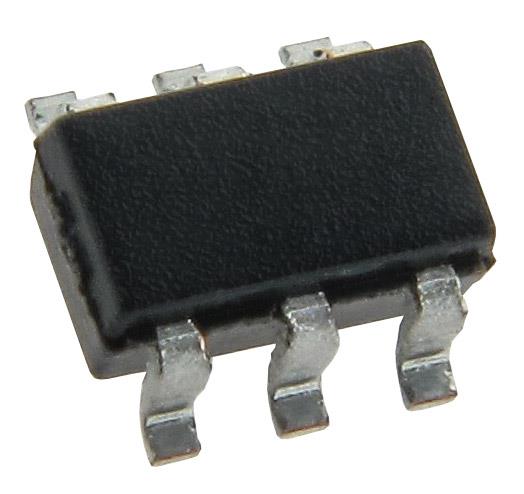

Maxim Integrated MAX40088AUT+ Operational Amplifiers Single/Dual/Quad Low-Noise Amp

Gain V/V: 5 V/V

Shutdown: Shutdown

Output Type: Rail-to-Rail

3 dB Bandwidth: 42 MHz

Amplifier Type: Low Noise, Low Bias

Mounting Style: SMD/SMT

SR - Slew Rate: 10 V/us

THD plus Noise: - 110 dB

Development Kit: MAX40088EVKIT#

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V, +/- 2.75 V

Supply Voltage - Min: 2.7 V, +/- 1.35 V

Ib - Input Bias Current: 2.3 nA

Operating Supply Current: 2.5 mA

Ios - Input Offset Current: 500 pA

Output Current per Channel: 48 mA

Vos - Input Offset Voltage: 150 uV

Maximum Dual Supply Voltage: +/- 2.75 V

Minimum Dual Supply Voltage: +/- 1.35 V

GBP - Gain Bandwidth Product: 42 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.5 fA/sqrt Hz

en - Input Voltage Noise Density: 5.5 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 109 dB

PSRR - Power Supply Rejection Ratio: 107 dB
