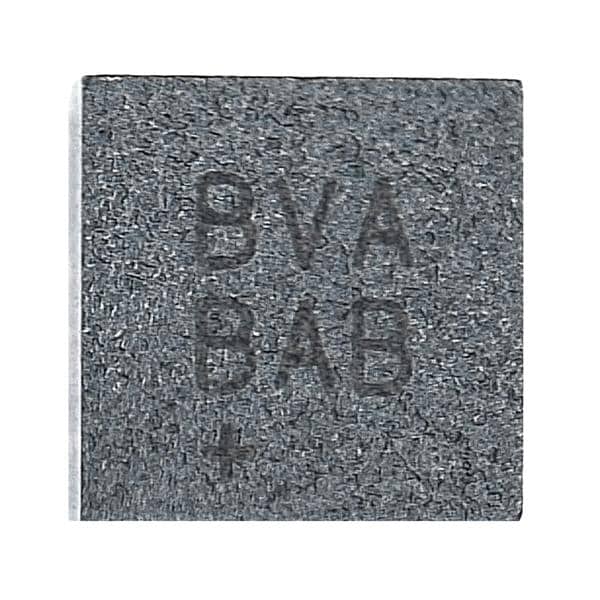

Maxim Integrated MAX16138ATA01/VY+T Voltage Monitor 0.7 Accuracy Single-Window Voltage Monitor with BIST

Accuracy: 0.7 %

Output Type: Open Drain, Push-Pull

Manual Reset: No Manual Reset

Mounting Style: SMD/SMT

Watchdog Timers: No Watchdog

Reset Delay Time: 100 ms

Threshold Voltage: 850 mV

Chip Enable Signals: No Chip Enable

Power Fail Detection: No

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.71 V

Pd - Power Dissipation: 496 mW

Battery Backup Switching: No Backup

Operating Supply Current: 12 uA

Number of Inputs Monitored: 1 Input

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
