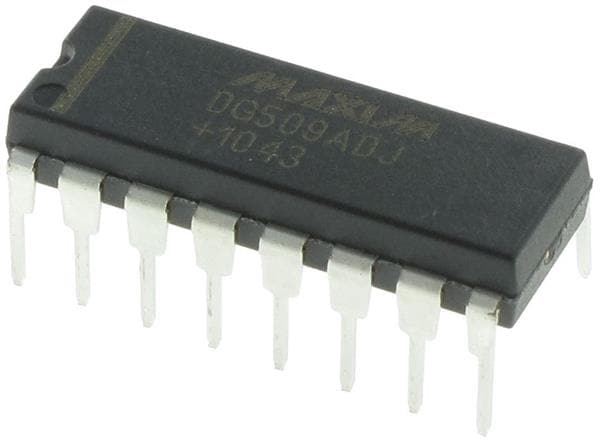

Maxim Integrated DG509ADJ+ Multiplexers Monolithic CMOS Analog Multiplexers

Width: 7.87 mm (Max)

Height: 4.45 mm (Max)

Length: 19.43 mm (Max)

Supply Type: Single Supply, Dual Supply

On Time - Max: 1.5 us

Mounting Style: Through Hole

Off Time - Max: 1 us

Number of Channels: 1 Channel

On Resistance - Max: 550 Ohms

Supply Current - Max: 200 uA

Pd - Power Dissipation: 842 mW

Propagation Delay Time: 1000 ns

Operating Supply Voltage: 15 V

Maximum Dual Supply Voltage: +/- 18 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
