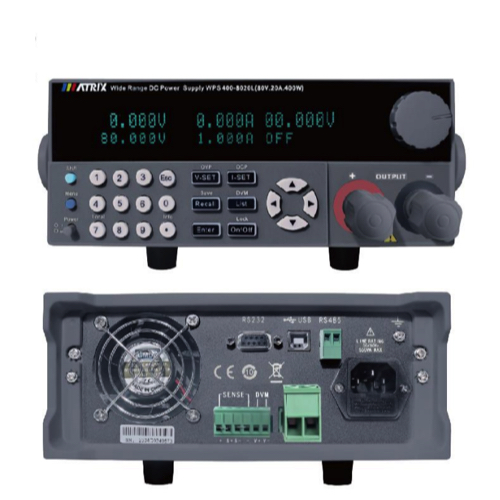

MATRIX WPS400-8020L Single Channel DC Power Supply (80V, 20A, 400W)

Rated input voltage: AC220V/110V ±10%

Rated output voltage: 0~80V

Rated output current: 0~20A

Rated output power: 400W

Load regulation rate: Voltage ≤ 0.01% + 30mV, Current ≤ 0.05% + 6mA

Line regulation: Voltage ≤ 0.01% + 30mV, Current ≤ 0.05% + 6mA

Setting value resolution: Voltage 1mV, Current 1mA

Readback value resolution: Voltage 1mV, Current 1mA

Setting accuracy (25°C ± 5°C): Voltage ≤ 0.03% + 5mV, Current ≤ 0.1% + 10mA

Readback accuracy (25°C ± 5°C): Voltage ≤ 0.03% + 5mV, Current ≤ 0.1% + 10mA

Ripple: Voltage ≤ 8 mVms, Current ≤ 8mArms

Rising time: ≤ 150mS (10% ~ 90%)

Falling time: ≤ 2S (10% ~ 90%)

Size (mm): 255 * 110 * 475

Weight (kg): 13.3

Datasheet

Catalog

Features

LIST output function

Timing output time can be set (0.1~99999.9 seconds)

Remote compensation function to compensate the voltage drop on line

With abundant SCPI instructions make it easy to build an intelligent testing platform

Optional external analog control function

Supports output from the front and rear panels

DVM voltmeter measurement function

Internal temperature monitoring function
