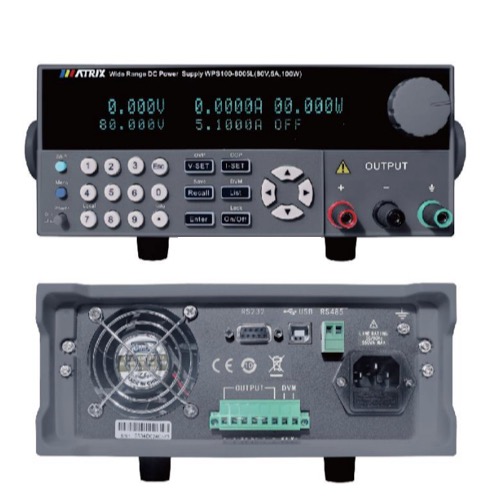

MATRIX WPS100-8005L Single Channel DC Power Supply (80V, 5A, 100W)

Rated input voltage: AC220V/110V ±10%

Rated output voltage: 0~80V

Rated output current: 0~5A

Rated output power: 100W

Load regulation rate: Voltage ≤ 0.01% + 3mV, Current ≤ 0.05% + 2mA

Line regulation: Voltage ≤ 0.01% + 3mV, Current ≤ 0.05% + 2mA

Setting value resolution: Voltage 1mV, Current 0.1mA

Readback value resolution: Voltage 1mV, Current 0.1mA

Setting accuracy (25°C ± 5°C): Voltage ≤ 0.03% + 5mV, Current ≤ 0.1% + 3mA

Readback accuracy (25°C ± 5°C): Voltage ≤ 0.03% + 5mV, Current ≤ 0.1% + 3mA

Ripple: Voltage ≤ 5 mVms, Current ≤ 5mArms

Rising time: ≤ 150mS (10% ~ 90%)

Falling time: ≤ 2S (10% ~ 90%)

Size (mm): 255 * 110 * 380

Weight (kg): 8.2

Datasheet

Catalog

Features

LIST output function

Timing output time can be set (0.1~99999.9 seconds)

Remote compensation function to compensate the voltage drop on line

With abundant SCPI instructions make it easy to build an intelligent testing platform

Optional external analog control function

Supports output from the front and rear panels

DVM voltmeter measurement function

Internal temperature monitoring function
