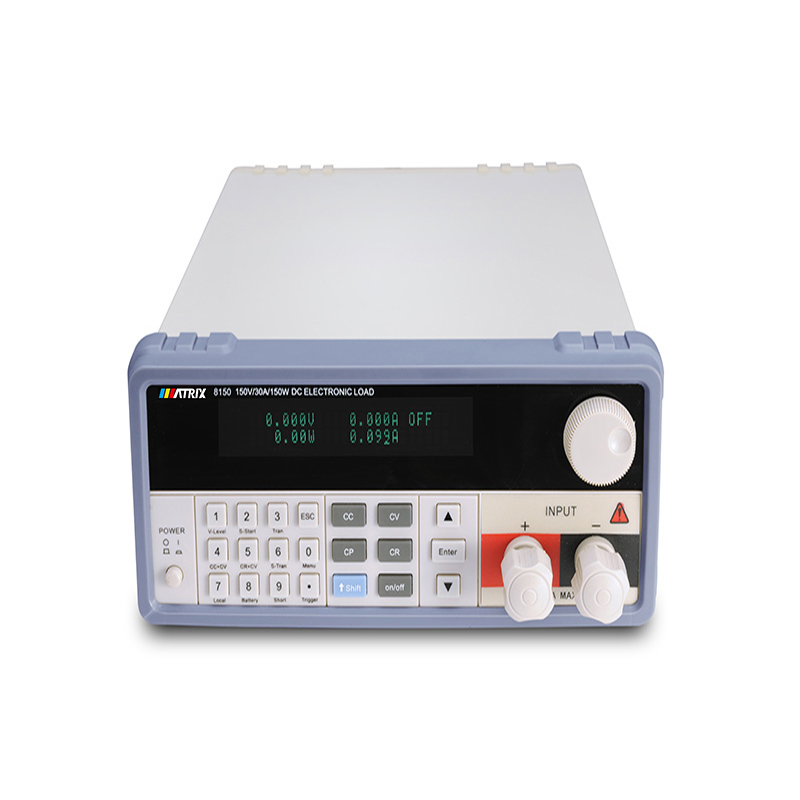

MATRIX PEL-8300 Electric Load (300W, 0~60A, 150V)

Rated input:

Power: 300W

Electric current: 0~60A

Voltage: 150V

Constant current mode

Range: 0 ~ 6A / 0 ~ 60A

Resolution: 0.1mA / 1mA

Accuracy: 0.03% + 0.05%

Constant voltage mode

Range: 0.1 ~ 19.999V 0.1 ~ 150V

Resolution: 1mV / 10mV

Accuracy: 0.03% + 0.05% FS

Constant resistance mode (when input voltage and current value ≥ 10% of full scale)

Range: 0.3Ω ~ 10k / 0.3Ω ~ 5k

Resolution: 16bits

Accuracy: 0.1% + 0.1% FS

Constant power mode (when input voltage and current value ≥ 10% of full scale)

Range: 0 ~ 300W

Resolution: 1mV / 10mV

Accuracy: 0.1% + 0.1% FS

Voltage measurement:

Voltage: 0~19.999V / 0~150V

Resolution: 0.1mV / 1mV

Accuracy: 0.015% + 0.03% FS / 0.015% + 0.02% FS

Curent measurement:

Electric current: 0~6A / 0~60A

Resolution: 0.1mA / 1mA

Accuracy: 0.03% + 0.05% FS/0.03% + 0.08% FS

Power measurement value (when input voltage and current value ≥ 10% of full scale)

Power: 100W / 300W

Resolution: 1mW / 10mW

Accuracy: 0.1% + 0.1% FS

Battery measurement: battery input: 0.5 ~ 150V

Maximum measurement: capacity = 999 / H; resolution = 0.1mA; actual = range = 1S ~ 16HS

Dynamic test function: 0 ~ 5kHz; T1 & T2: 60Us ~ 999S; Accuracy: ± 15% offset + 10% FS

Current soft start time: 1mS; 2mS; 5mS; 10mS; 20mS; 50mS; 100mS; 200mS; 500mS; 1000mS; 2000mS; Accuracy: ± 15% offset + 10% FS

Short circuit function

Current (CC): 6A / 60A

Voltage (CV): 0V

Resistance (CR): 25mΩ

Temperature

Operating temperature: 0 ~ 40 ° C / 80RH

Storage temperature: -10 ° C ~ 70 ° C / 80RH

Bare metal size (W * H * D): 215 * 100 * 355mm

Packing size (W * H * D): 310 * 200 * 480mm

Net weight (kg): 4.9

Gross weight (kg): 5
