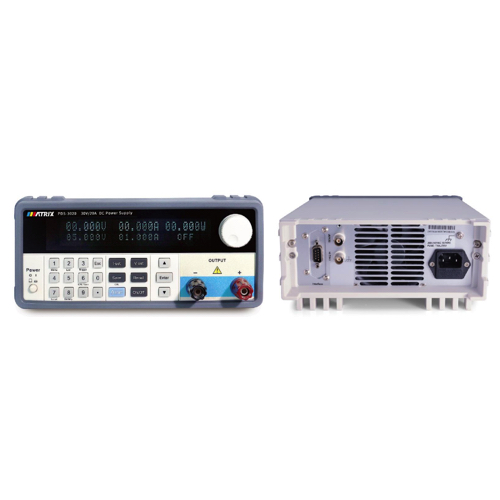

MATRIX PDS-2030 Single Channel DC Power Supply (20V, 30A, 600W)

Rated input voltage: AC220V±10%

Rated DC output (0°C40°C):

Voltage: 0~20V

Current: 0~30A

Power: 600W

OVP: 0.1~24V

OCP: 0.1~34A

Power effect: Voltage ≤0.01%+10mV, Current ≤0.2%+10mA

Load effect: Voltage ≤0.1%+5mV, Current ≤0.2%+5mA

Setting precision: Voltage ±(0.03% of reading+10mV) (25±5°C), Current ±(0.3% of reading+10mA) (25±5°C)

Setting resolution: 1mV/1mA

Voltage recovery time: ≤1.5ms (50% load change)

Voltage temperature coefficient: ≤300ppm/°C

Accuracy of reading: Voltage ±(0.02% of reading+5mV) (25±5°C), Current ±(0.05% of reading+10mA) (25±5°C)

Protection: OLP, OVP, OCP, OTP, RP

Interface: Standard RS-232, supports SCPI instruction set, analog control interface (optional)

Storage redeployment: 100 groups

Operating environment: Indoor use, altitude ≤2000m, ambient temperature 0~40°C, relative humidity ≤80%, install level II, degree of pollution 2

Storage environment: Ambient temperature -10~70°C, relative humidity ≤70%

Power input: AC 220V±10%, 50/60Hz

Accessories: User manual 1pc, power cord1pc

Instrument size (WxHxD): 220x150x400 mm

Net weight: 4.6kg

Datasheet

Catalog

• Voltage 1mV current 1mA resolution, high precision display

• Set voltage and current in two ways; digital keyboard and knob

• 100 sets of voltage and current storage call out function, convenient and quick

• Voltage compensation function ensures high precision

Output switch control, easy to control

• Intelligent temperature control fan, extremely practical

• The knob adopts the code switch, which is convenient to use and has the function of preventing misadjustment

• Over voltage, over current, over temperature protection function
