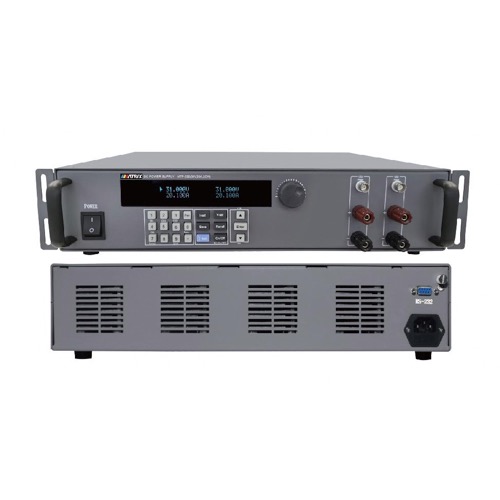

MATRIX MTP-200 Multi Channel DC Power Supply (30V*2CH, 20A*2CH, 1200W)

Rated output voltage: 0-30V*2CH

Rated output current: 0-20A*2CH

Rated output power: 1200W

Rated input voltage: AC 220V/110V ± 10%

Voltage transformation method: Switching Mode Power Supply

Load regulation:

Voltage: ≤ 0.1% + 20mV

Current: ≤ 0.1% + 5mA

Line regulation:

Voltage: ≤ 0.1% + 20mV

Current: ≤ 0.1% + 5mA

Setting resolution:

Voltage: 1mV

Current: 1mA

Setting accuracy:

Voltage: ≤ 0.1% + 10mV (25°C ± 5°C)

Current: ≤ 0.3% + 8mA

Readback resolution:

Voltage: 1mV

Current: 1mA

Readback accuracy:

Voltage: ≤ 0.1% + 10mV (25°C ± 5°C)

Current: ≤ 0.3% + 8mA

Temperature coefficient:

Operating environment: 0 to 40°C ≤ 85% R.H

Storage environment: -15 to 70°C ≤ 85% R.H

Machine size (WxHxD): 440x90x340 mm

Net weight: 9 kg

Gross weight: 11 kg

Datasheet

Catalog

Features

• Voltage and current can be set through a numeric keypad and knob

• Resolution of 1mV voltage and 1mA current

• Two independent adjustable channels, isolated from each other

• Voltage compensation function ensures accuracy

• List sequence output function

• Standard 2U model

• Intelligent temperature controlled fan for a quieter usage environment

• 9 sets of preset storage functions

Applications

■Prouduction line work bench routine test

■Lab and institute

■Electronic repair

■ Automated equipment integration testing
