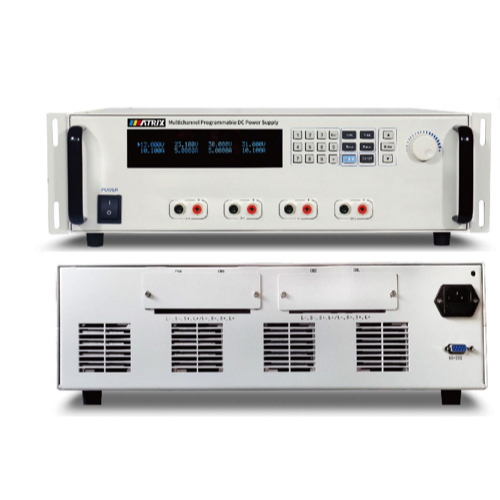

MATRIX MPS-6034 Multi Channel DC Power Supply (60V, 3A, 720W, 4CH)

Rated input voltage: AC220V/110V±10%

Rated output voltage: 0-60V *4CH

Rated output current: 0~3A*4CH

Rated output power: 720W

Transformation method: Linear power supply

Load regulation:

Voltage: ≤ 0.02% + 5mV

Current: ≤ 0.02% + 5mA

Line regulation:

Voltage: ≤ 0.02% + 5mV

Current: ≤ 0.02% + 5mA

Set value resolution:

Voltage: 1mV

Current: 0.1mA

Setting accuracy (25°C ± 5°C):

Voltage: ≤ 0.05%+5digits

Current: ≤ 0.05% + 2mA

Readback resolution:

Voltage: 1mV

Current: 0.1mA

Readback accuracy (25°C ± 5°C):

Voltage: ≤ 0.05%+5digits

Current: ≤ 0.05% + 2mA

Ripple and noise:

Voltage: ≤ 2mV(rms)

Current: ≤ 5mA(rms)

Temperature Coefficient:

Operating environment: 0 to 40°C ≤ 80% R.H

Storage environment: -15 to 70°C ≤ 80% R.H

Interface standard: RS232

Machine size (WxHxD): 480 x142x370

Weight: 23 kg
