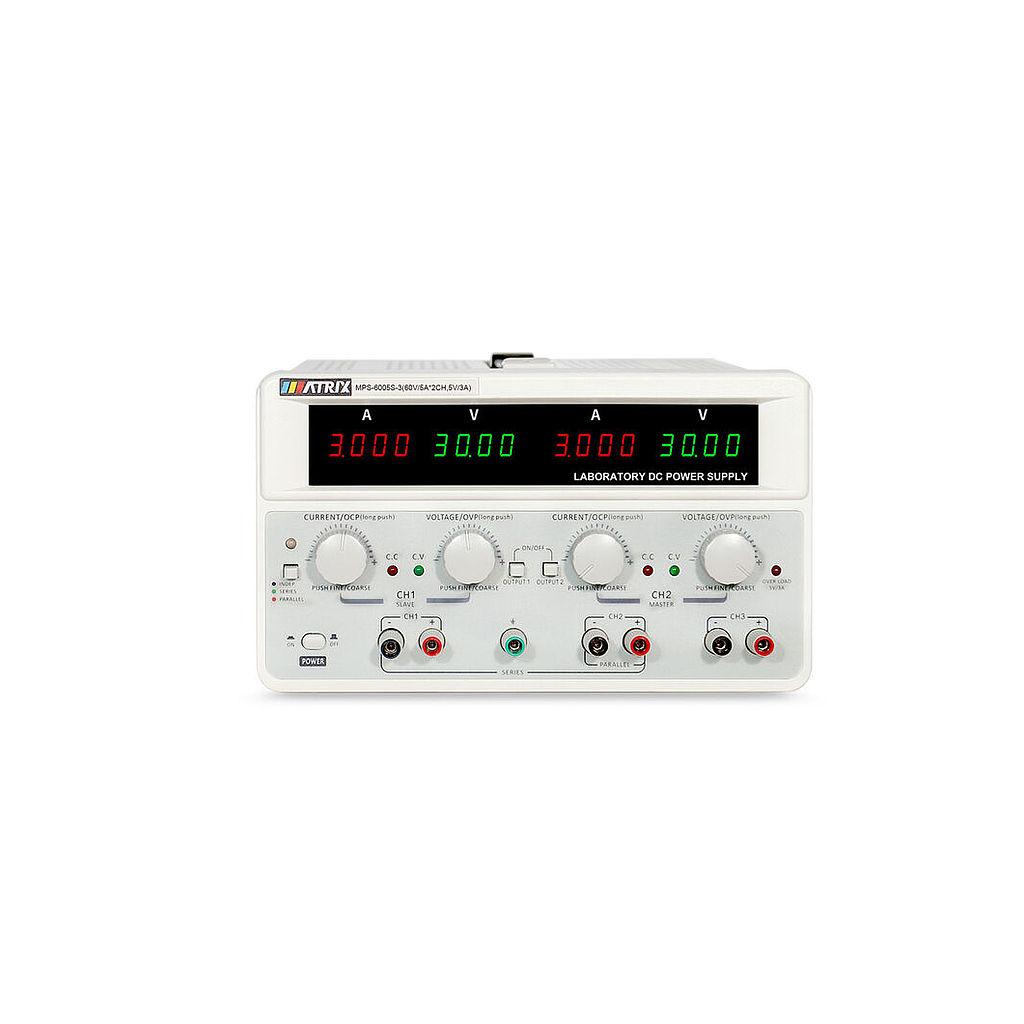

MATRIX MPS-6005S-3 Triple Channel DC Power Supply (60V/5A*2CH, 5V/3A, 615W)

Channel: CH1,CH2,CH3

Rated output voltage:

CH1/CH2: 0-60V

CH3: 5V

Rated output current:

CH1/CH2: 0-5A

CH3: 3A

Rated output power: 615W

Load regulation rate:

Voltage: <0.1%+5mV

Current: <0.2%+3mA

Line regulation rate:

Voltage: <0.1%+5mV

Current: <0.2%+3mA

Set value accuracy:

Voltage: ≤0.1%+2digit

Current: ≤0.2%+3mA

Readback value accuracy:

Voltage: ≤0.1%+2digit

Current: ≤0.2%+3mA

Readback resolution:

Voltage: 10mV

Current: 1 mA

Ripple and Noise:

Voltage: ≤10mVrms

Current: ≤5mArms

OVP: 0~62V+0.2%FS

Max voltage: 62V±0.2%

OCP: 0~5.1A+0.2%FS

Max current: 5.1A±0.2%

Temperature:

Operational environment: 0~40°C, ≤80%RH

Storage environment: -15-70℃, ≤80%RH

Size (W*H*D): 219x95x300mm

Weight(kg):4.5
