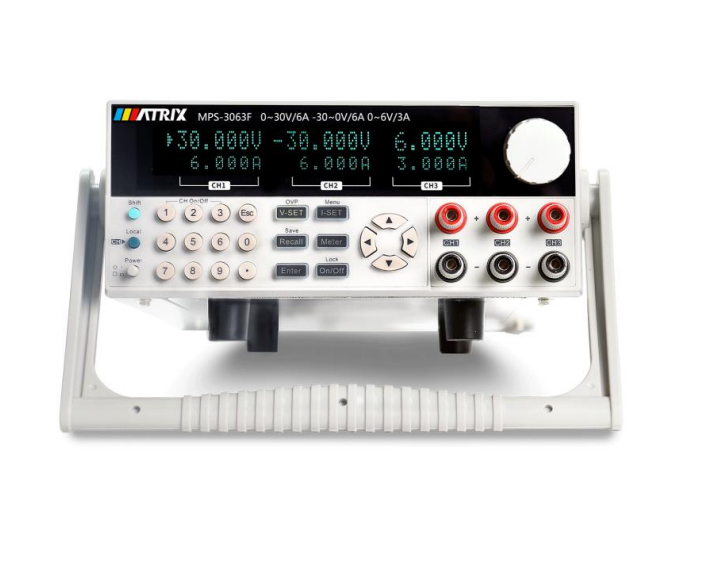

MATRIX MPS-3063F Programmable Triple Channel DC Power Supply (3CH; 0~6A*2/0~3A*1)

Rated output:

+ Voltage: CH1: 0~30V, CH2: -30~0V, CH3: 0~6V

+ Current: 0~6A*2/0~3A*1

Load regulation rate

+ Voltage: ≤0.01%+3mV

+ Current: ≤0.01%+3mA

Line regulation rate

+ Voltage: ≤0.01%+3mV

+ Current: ≤0.01%+3mA

Set resolution

+ Voltage: 1mV

+ Current: 1mA

Readback resolution

+ Voltage: 1mV

+ Current: 1mA

Set value accuracy

+ Voltage: ≤0.03%+10mV

+ Curren:t ≤0.1%+8mA

Readback value accuracy

+ Voltage: ≤0.03%+10mV

+ Current: ≤0.1%+8mA

Ripple and noise

+ Voltage（rms): ≤2mVrms

+ Current: ≤5mArms

Storage

+ Storage/Cal :40 groups

+ Function: timed output off

Timer

+ Time set 0.1s~3600s

+ Resolution: 0.1s

Interface: RS232,USB

Working temperature: 0~40℃

Equipment size（W*H*D) mm: 255*110*380

N.W kg: 11

G.W kg: 12.5
