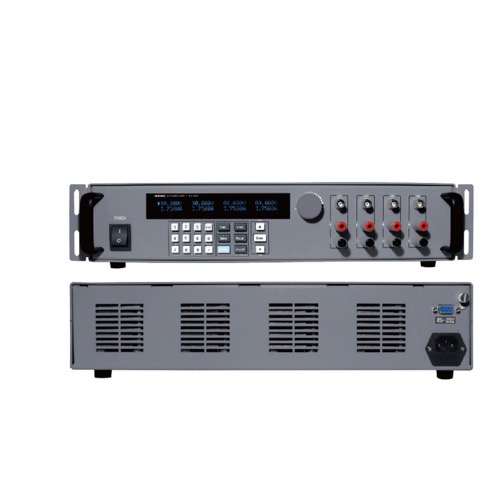

MATRIX MFP-4000 Multi Channel DC Power Supply (150W, 80V, 6A, 4CH)

Rated input voltage: AC 110V/220V±10%

Rated output power: 150W*4CH

Rated output voltage: 0~80V*4CH

Rated output current: 0~6A*4CH

Transformer mode: Switching power supply

Load regulation:

Voltage: ≤0.02%+5mV

Current: ≤0.02%+5mA

Line regulation:

Voltage: ≤0.02%+5mA

Current: ≤0.02%+5mA

Set value resolution:

Voltage: 1mV

Current: 0.1mA

Setting accuracy (25°C ± 5°C):

Voltage: ≤ 0.1% + 8mV

Current: ≤ 0.2% + 2mA

Readback resolution:

Voltage: 1mV

Current: 0.1mA

Readback accuracy(25°C ± 5°C):

Voltage: ≤ 0.1% + 8mV

Current: ≤ 0.2% + 2mA

Ripple:

Voltage: ≤ 8mV(rms)

Current: ≤ 3mA(rms)

Temperature:

Operating environment: 0 to 40°C ≤ 80% R.H

Storage environment: -15 to 70°C ≤ 80% R.H

Interface standard: RS232

Machine size (WxHxD): 440x90x340 mm

Net weight: 9 kg
