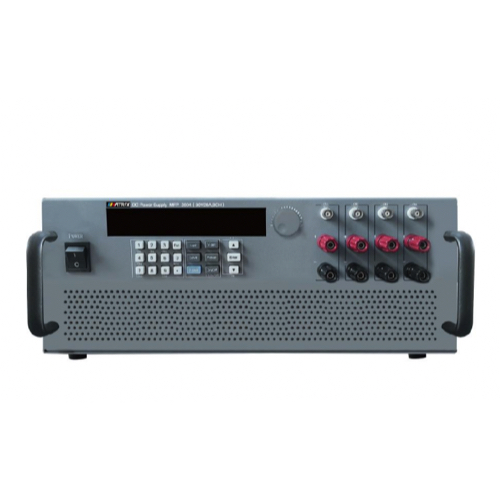

MATRIX MFP-2004 Multi Channel DC Power Supply (30V, 20A, 2400W, 4CH)

Rated output voltage: 0~30V*4CH

Rated output current: 0~20A*4CH

Rated output power: 2400W

Rated input voltage: AC 220V/110V±10%

Voltage transformation method: Switching Mode Power Supply

Load regulation:

Voltage: ≤0.1%+20mV

Current: ≤0.1%+5mA

Line regulation:

Voltage: ≤0.1%+20mV

Current: ≤0.1%+5mA

Setting resolution:

Voltage: 1mV

Current: 1mA

Setting accuracy (25°C ± 5°C):

Voltage: ≤ 0.1%+10mV

Current: ≤ 0.3%+8mA

Readback resolution:

Voltage: 1mV

Current: 1mA

Readback accuracy(25°C ± 5°C):

Voltage: ≤0.1%+10mV

Current: ≤0.3%+8mA

Temperature coefficient:

Operating environment: 0 to 40°C ≤ 85% R.H

Storage environment: -15 to 70°C ≤ 85% R.H

Machine size (WxHxD): 480x184x370

Net weight: 14 kg

Gross weight: 16 kg
