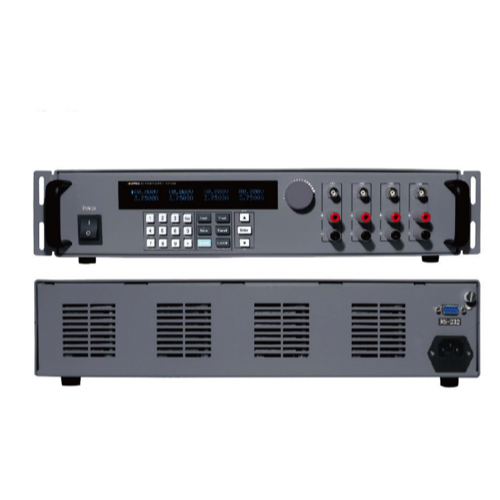

MATRIX MFP-2000 Multi Channel DC Power Supply (32V, 6A, 192W, 4 CH)

Rated input voltage: AC 110V/220V±10%

Rated output voltage: 0~32V*4CH

Rated output current: 0~6A*4CH

Rated output power: 192W^ * 4CH

Transformer mode: Switching power supply

Load regulation:

Voltage: ≤ 0.02% + 5mV

Current: ≤ 0.02% + 5mA

Line regulation:

Voltage: ≤ 0.02% + 5mV

Current: ≤ 0.02% + 5mA

Set value resolution:

Voltage: 1mV

Current: 0.1mA

Setting accuracy (25°C ± 5°C):

Voltage: ≤ 0.1% + 8mV

Current: ≤ 0.2% + 2mA

Readback resolution:

Voltage: 1mV

Current: 0.1mA

Readback accuracy(25°C ± 5°C):

Voltage: ≤ 0.1% + 8mV

Current: ≤ 0.2% + 2mA

Ripple:

Voltage: ≤ 8mV(rms)

Current: ≤ 3mA(ms)

Temperature:

Operating environment: 0 to 40°C ≤ 80% R.H

Storage environment: -15 to 70°C ≤ 80% R.H

Interface Standard: RS232

Machine size (WxHxD): 440x90x340

Net weight: 9 kg

Datasheet

Catalog

Features

• List sequence output function 4 in 1 easy to install and occupies a small space

• Each channel is independently adjustable and isolated from each other

• Voltage compensation function ensures accuracy

• Intelligent temperature controlled fan for quieter usage environment

• Voltage and current range setting function

• Button sound on/off function
