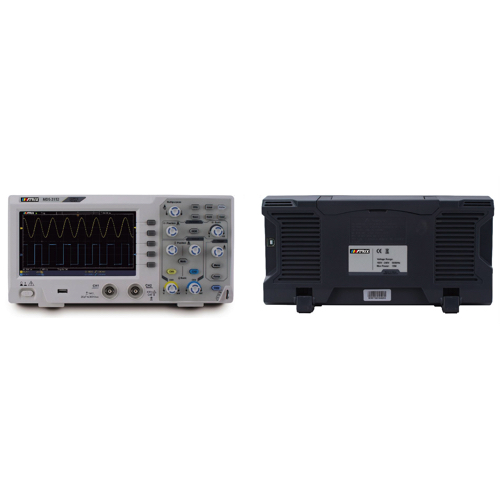

MATRIX MDS-2252 Super- Economical Digital Storage Oscilloscope (250MHz)

Bandwidth: Up to 250MHz

Sample Rate: 1GS/s

Horizontal Scale (s/div): 2ns/div - 1000s/div, step by 1-2-5

Rise Time (at input, typical): ≤1.7ns

Channel: 2

Display: 7" color LCD, 800 x 480 pixels

Input Impedance: 1ΜΩ ± 2%, in parallel with 20pF ± 5pF

Channel Isolation: 50Hz: 100:1, 10MHz: 40:1

Maximum Input Voltage: 400V (PK-PK) (DC+AC, PK-PK)

DC Gain Accuracy: ±3%

Record Length: 10K

DC Accuracy (average): Average ≥ 16: ±(3% reading + 0.05 div) for ∆V

Probe Attenuation Factor: 1X, 10X, 100X, 1000X

LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)

Sample Rate / Relay Time Accuracy: ±100ppm

Interpolation: sin (x) / x

Interval (∆T) Accuracy (full bandwidth): Single: ±(1 interval time + 100ppm x reading + 0.6ns), Average >16: ±(1 interval time + 100ppm x reading + 0.4ns)

Input Coupling: DC, AC, and GND

Vertical Resolution (A/D): 8 bits (2 channels simultaneously)

Vertical Sensitivity: 5mV/div - 5V/div (at input)

Trigger Type: Edge, Video

Trigger Mode: Auto, Normal, and Single

Trigger Level: ±5 divisions from screen center

Line / Field Frequency (video): NTSC, PAL, and SECAM standard

Cursor Measurement: ∆V, and ∆T between cursors

Automatic Measurement: Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, Width, +Duty, -Duty, Delay A→B, Delay A-B, area, cycle area

Waveform Math: +, -, x, ÷, invert, FFT

Waveform Storage: 16 waveforms

Lissajous Figure: Full bandwidth ±3 degrees

Communication Interface: USB host, USB device available

Frequency Counter: Full bandwidth ±3 degrees

Power Supply: 100V-240V AC, 50/60Hz, CAT II

Power Consumption: <15W

Fuse: 2A, T class, 250V

Dimensions (W x H x D): 301 x 152 x 70 mm

Device Weight: 1.10 kg
