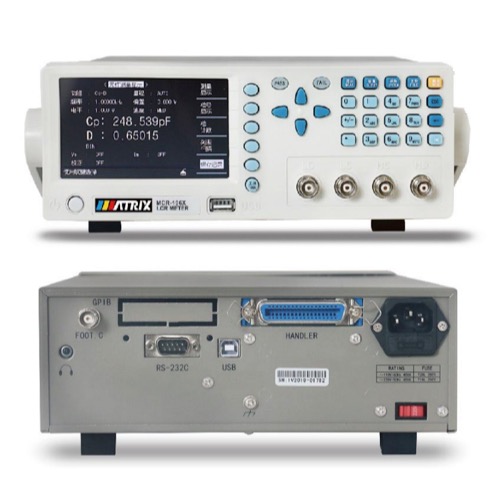

MATRIX MCR-6100A High Precision LCR Meter (12Hz-100kHz)

Test parameter: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR

Test frequency: 12Hz-100kHz

Basic testingf accuracy: 0.05%

Equivalent circuit: In series, in parallel

Mathematical functions: Percentage deviation

Range way: Automatic, hold, manual selection

Trigger mode: Internal, manual, external, bus

Measure speed (≥1kHz): High speed: The fastest is 75 times/second (customizable), middle: 12times/second,low: 3times/second

Average time: 1-255

Delay time: 0-6s, step is 1ms

Display mode: Open circuit/short circuit/quick reset

Calibration function: Direct reading, Δ, Δ%, V/I (Measured voltage/current monitoring)

Displayer: digit display of main and minor parameters, 4.3 inch true color LCD displayer

Testing signal:

Output impedance: 30 Ω, 1000, 10/100, 10/CC optional

Test signal level:

Normal: 5mV~2V

Accuracy: 10%, 1mV step

Constant level: 10mV-1V

Accuracy: 5%, 1mV step

See product manual for details

DC bias source

Internal: 0V, 1.5V, 2V, Accuracy 1%

Matching: IV1A:0~1A DC bias source option

Display range:

|Z|, R, X: 0.01mΩ - 99.9999MΩ

DCR: 0.001mΩ - 99.9999MΩ

|Y|, G, B: 0.00001μS - 99.99995

C: 0.00001pF - 9.9999F

L: 0.00001μH – 99.9999kH

D: 0.00001-9.9999

Q: 0.00001-9999.9

θ (DEG): -179.999°-179.999°

θ (RAD): 3.14159-3.14159

Comparator function: 10 grades (9 grades qualified, 1 grade not qualified), otherwise with AUX grade

Multiparameter: Four parameters can be selected for simultaneous measurement and display

Curve scan function: Under various test conditions, perform graphic scanning analysis on the test piece

Storage: More than 100 sets of internal instrument settings for storage/call, U disk extension of more than 500 sets

Interface: Standard with RS232C, HANDLER, USB HOST, USB DEVICE, Headphone jack, Foot pedal interface; Compatible with GPIB, LAN

Instrument size (WxHxD): 265x100x340 mm

Net weight: 4.5 kg

Gross weight: 5.8 kg
