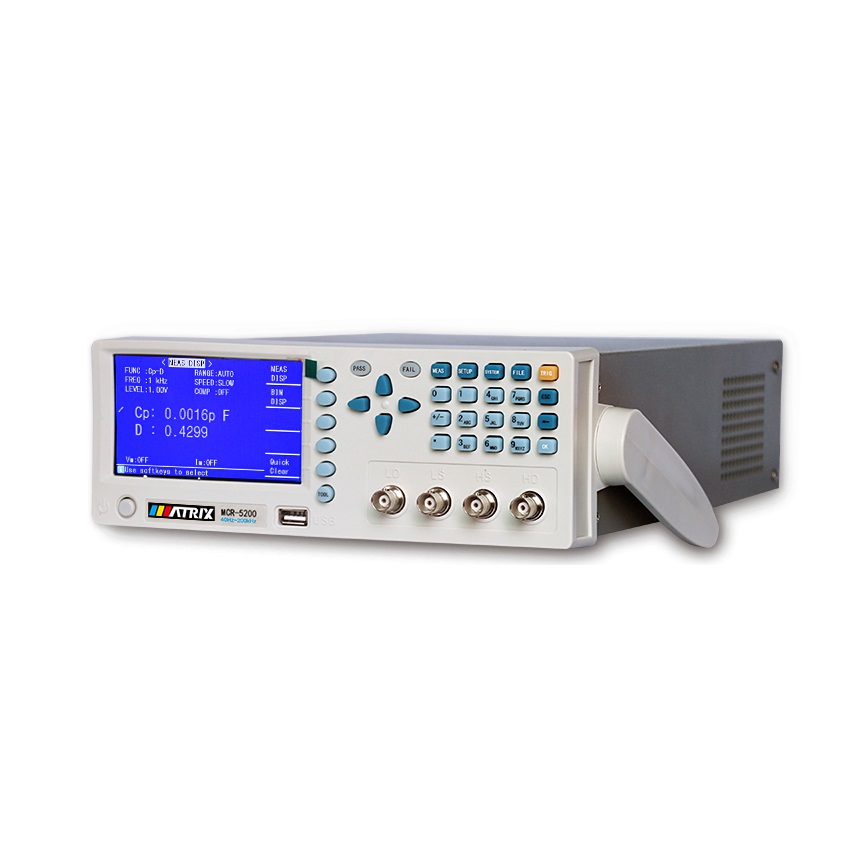

MATRIX MCR-5200 LCR Meter (40Hz - 200kHz)

Test parameters: L, C, R, lZl, R, X, ESR, θ (Deg), θ (Rad)

Test frequency: 40Hz, 50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 800Hz, 1kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz , 10kHz, 12kHz, 15kHz, 15.7kHz, 16.2kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 66.65kHz, 75kHz, 100kHz,120kHz, 150kHz, 200kHz, a total of 41 frequency points

Basic measurement accuracy: 0.1%

Test signal level: 0.1V, 0.3V, 1V

Equivalent Circuit: Series Parallel

Mathematical functions: Percentage deviation

Range method: Automatic, hold, manual selection

Trigger method: Internal, manual, external, bus

Measuring speed (≥1kHz): Fast: the fastest 30 times / second, medium speed: 10 times / second. Slow speed: 3 times / second

Average times: 1-255

Delay time: 0-6S, step by 1ms

Calibration function: Open circuit / short circuit / quick reset

Display method: Direct reading, Δ%, V / I (measured voltage / current monitoring)

Monitor: 5-digit display of main and auxiliary parameters, 4.3-inch true color LCD display

Output impedance: 30Ω, 100Ω optional

Comparator function: 5 files sorting function

Memory: More than 100 sets of internal instrument settings for storage / recall, U disk expands more than 500 sets

Interface: Standard RS-232C, HANDLER, USB HOST, optional USB DEVICE, headphone jack, foot pedal, GPIB

Bare metal size (W * H * D): 240 * 100 * 330mm

Packing size (W * H * D): 330 * 210 * 425mm

N.W (kg): 3.8

G.W (kg): 4.7
