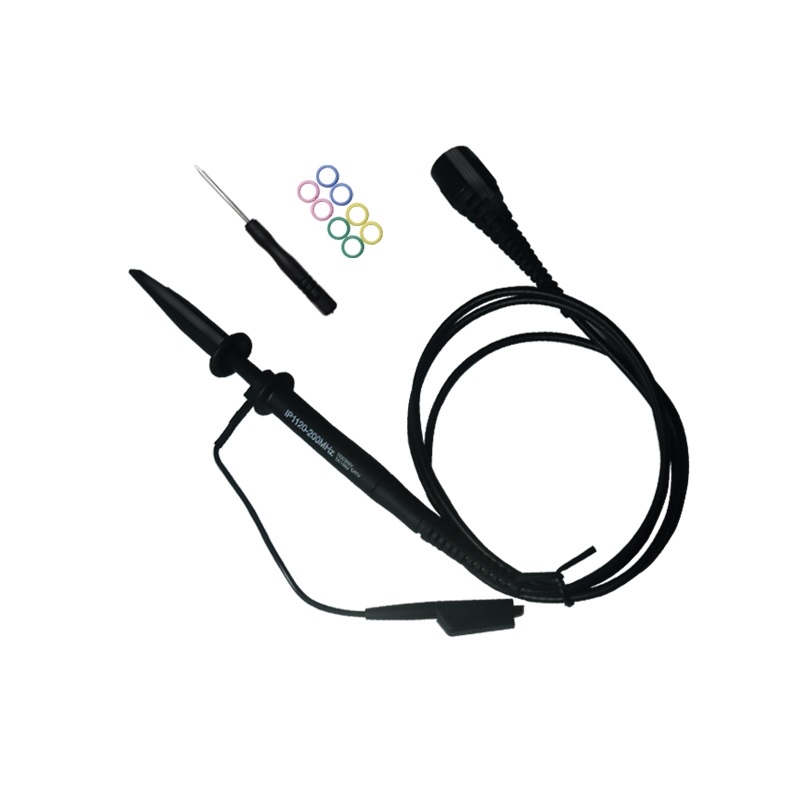

MATRIX IP1110 General Oscilloscope Probe
ManufacturerMATRIX(View more products from this manufacturer)
ModelIP1110
USD 19.87
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

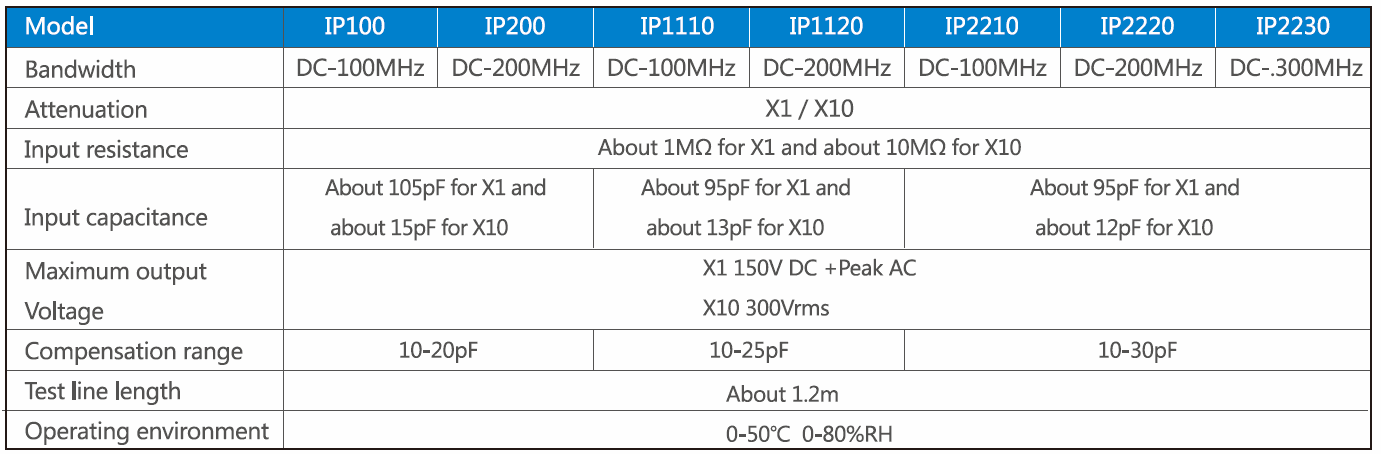

Bandwidth: DC-100MHz
Attenuation: X1/X10
Input Resistance: ≈1MΩ for X1 and ≈10MΩ for X10
Input Capacitance: ≈95pF for X1 and ≈13pF for X10
Max Output Voltage:
X1: 150V DC + Peak AC
X10: 300Vms
Compensation range: 10~25pF
Test Line Length (meter): ≈1.2m
Operating environment: 0~50°C, 0~85%RH
