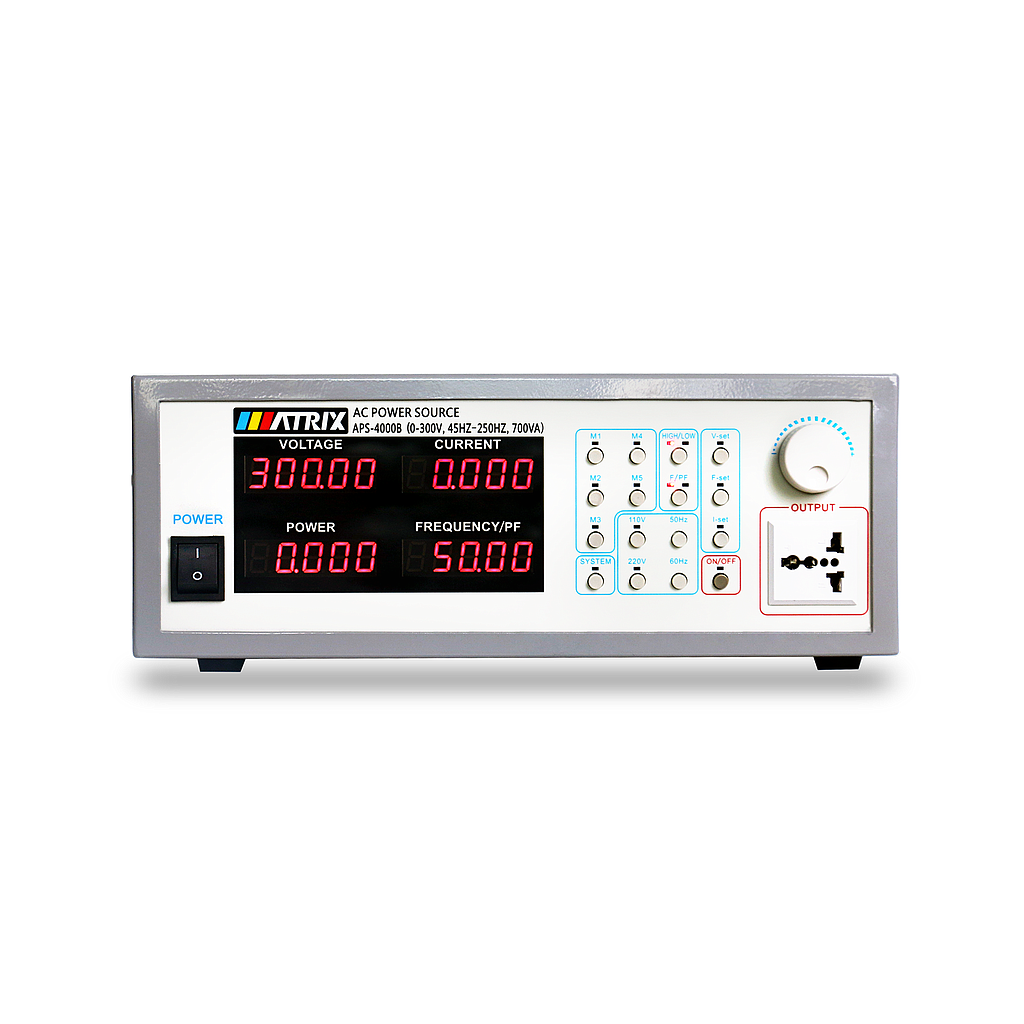

MATRIX APS-4000B Storage AC Power Source (700VA)

Capacity: 700VA

Operating mode: SPWM (Sinusoidal Pulse Width Modulation)

Input

Phase: 1φ2W

Voltage: 220V ± 10%

Frequency: 45-250Hz (0.01step)

Output

Phase: 1Φ2W

Voltage: 0 ~ 150VAC / 0 ~ 300VAC AUTO

Frequency: 45 ~ 250Hz (0.01step)

Maximum current:

L = 120V: 6A

H = 240V: 3A

Load regulation: 1%

Waveform distortion: 2% (low-end 120V, high-end 240V, with pure resistance load)

Frequency stability: 0.01%

Display: Voltage / current / Frequency / power / power factor

Voltage resolution: 0.01V

Frequency resolution: 0.01Hz

Current resolution: 0.001A

Storage: M1 ~ M5 (V_F_A)

Test accuracy:

Voltage: ± 0.5% FS + 5dgt

Electric current: ± 0.5% FS + 5dgt

Frequency: ± 0.01% FS + 5dgt

Power: ± 0.5% FS + 5dgt

Setting accuracy:

Voltage: ± 1% FS

Frequency: ± 0.1% FS

Current limit setting: 0 ~ Max Current (The maximum current is: maximum capacity / 240V or P / 240)

Output protection: Overcurrent, overtemperature, overload, short circuit

Operating environment: 0 ~ 40 ° C ≤80% RH

Bare metal size (mm): 365 * 150 * 430

Net weight (kg): 15
