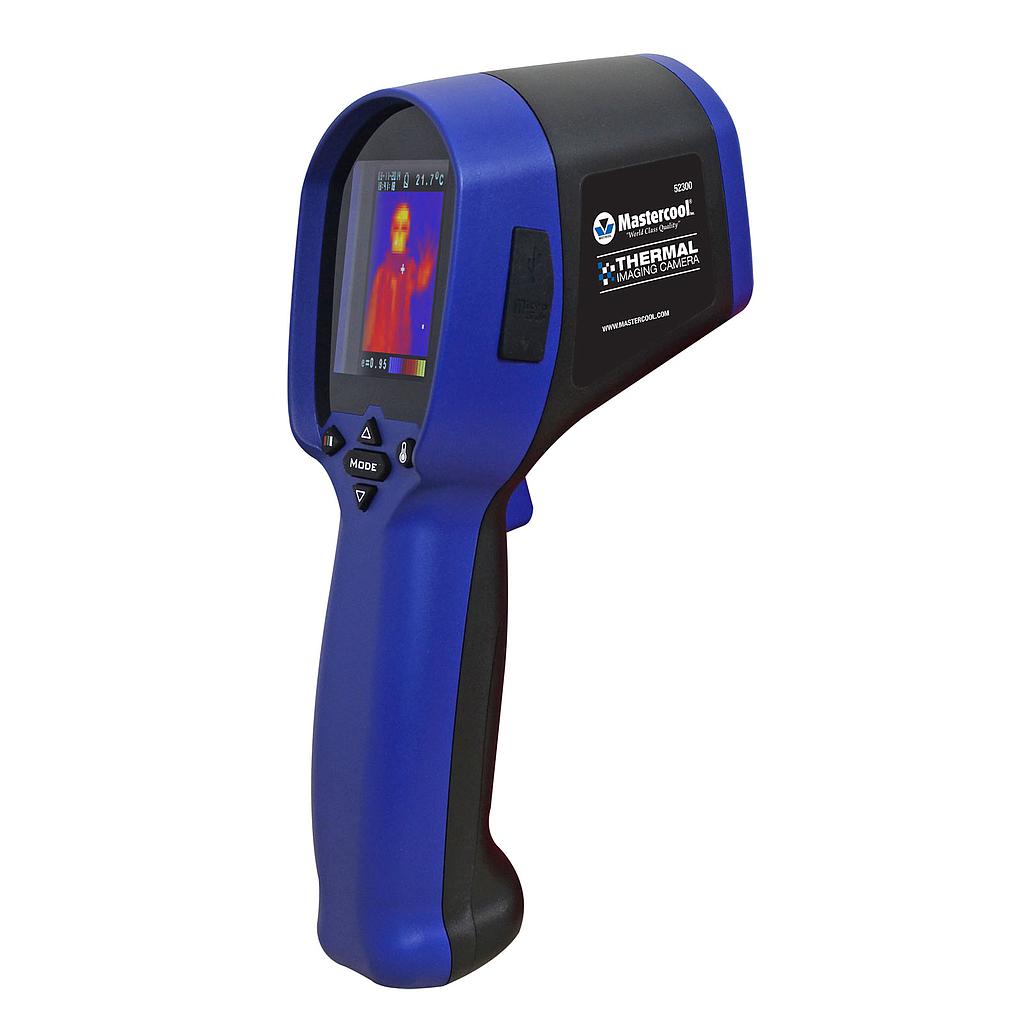

MasterCool 52300 Thermal Imaging Camera 8gb

Features:

Mastercool’s thermal imaging camera can measure from -20 to 250˚C (-4 to 482˚F) and display thermal images and temperature. Thermal images can be saved to a micro SD card and transferred to the software included for image reporting.

Fully Automatic

Superior Measurement/Accuracy

Micro SD Card Storage

Reporting Software Included

Specifications:

Thermal Image Resolution: 32 x 31 pixels

Measurement Range:-20 to 350˚C (-4 to 662˚F)

Accuracy (Tamb=20 to 26˚C): ±2% of reading, or 2˚C (4˚F) whichever is greater

Thermal Sensitivity: 0.1˚C

Frame Rate: 9 Hz

Field of View: 33 x 33 deg

Emissivity Range: 0.95 default – adjustable 0.1 to 1 step 0.1

Focus: Focus free

LCD Size: 2.8” (71 mm)

Image Storage: Stores up to 25,000 images per gb, bmp file format

Memory Type: Support 8G micro SD card

Battery Type: (4) AA

Battery Life (hr) (backlit): 6 hours

Datasheet
