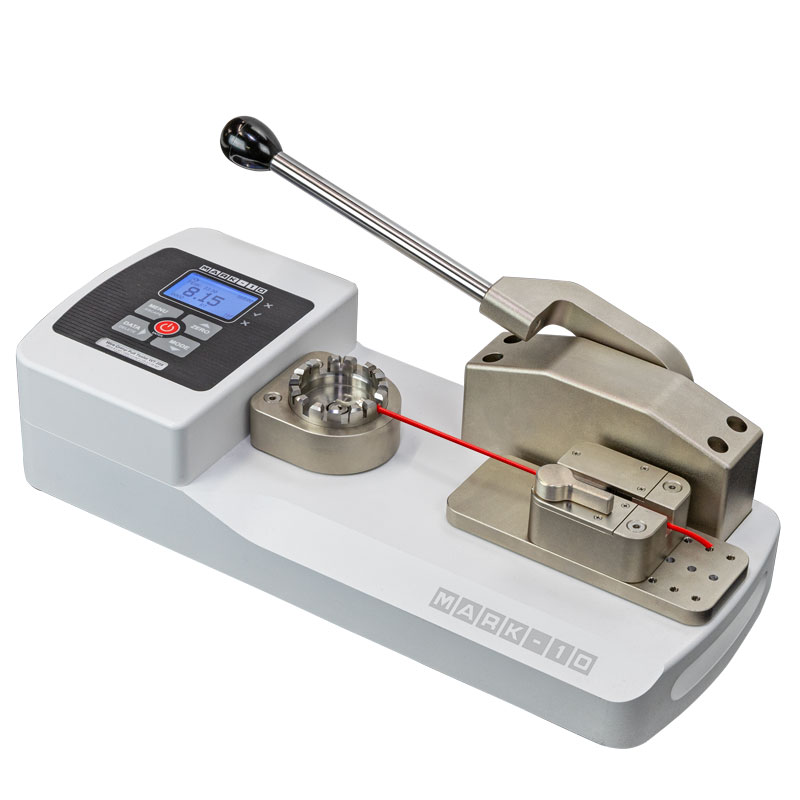

Mark-10 WT-205 Wire Crimp Pull Tester (200 lbF, 3200ozF, 100kgF, 1000 N, 1kN)

Capacity x Resolution: 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN

Accuracy: ±0.2% of full scale

Wire gauge range*:AWG30 - AWG3*

Wire diameter range:0.01 - 0.25 in [0.3 - 6.3 mm]

Minimum sample length:2.1 in [53.3 mm], excluding termination

Maximum sample elongation:1.70 in [43.2 mm]

Power:AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage.

Battery Life:Backlight on: up to 7 hours of continuous use

Backlight off: up to 24 hours of continuous use

Sampling rate:7,000 Hz

Outputs:USB / RS-232: Configurable up to 115,200 baud. .

Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.

Analog: ±1 VDC, ±0.25% of full scale at capacity.

Set points: Three open drain lines, 40 VDC max., 100 mA DC max.

Safe overload:150% of full scale (display shows "OVER" at 110% and above)

Weight:16.1 lb [7.3 kg]
