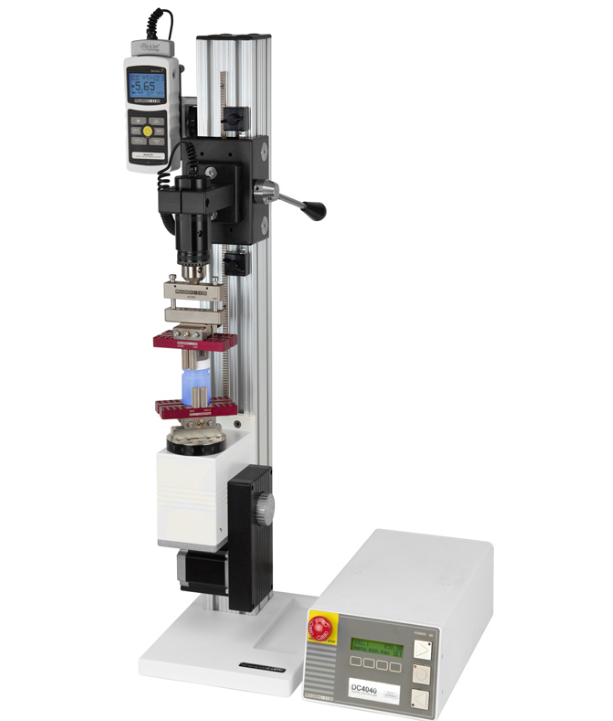

Mark-10 TSTM-DC-2 Torque Test Stand (25 lbFin [2.8 Nm], vertical)

Maximum torque: 25 lbFin [2.8 Nm]

Speed range: 0.04 – 60 RPM

Speed accuracy: ±0.2% of setting, ±0% variation with load

Rotational travel accuracy: ±0.7° [0.002 rev.]

Rotational travel resolution: 0.1° [0.01 rev.]

Rotational travel repeatability: 0.1° [0.0003 revolutions]

Throat: 4.10" [104 mm]

Manual adjustment: 12° / adjustment knob revolution

Maximum slider travel: 15.5" [394 mm]

Slider travel rate: 1.047” [26.6 mm] / lever revolution

Universal power supply: 80-250 VAC
