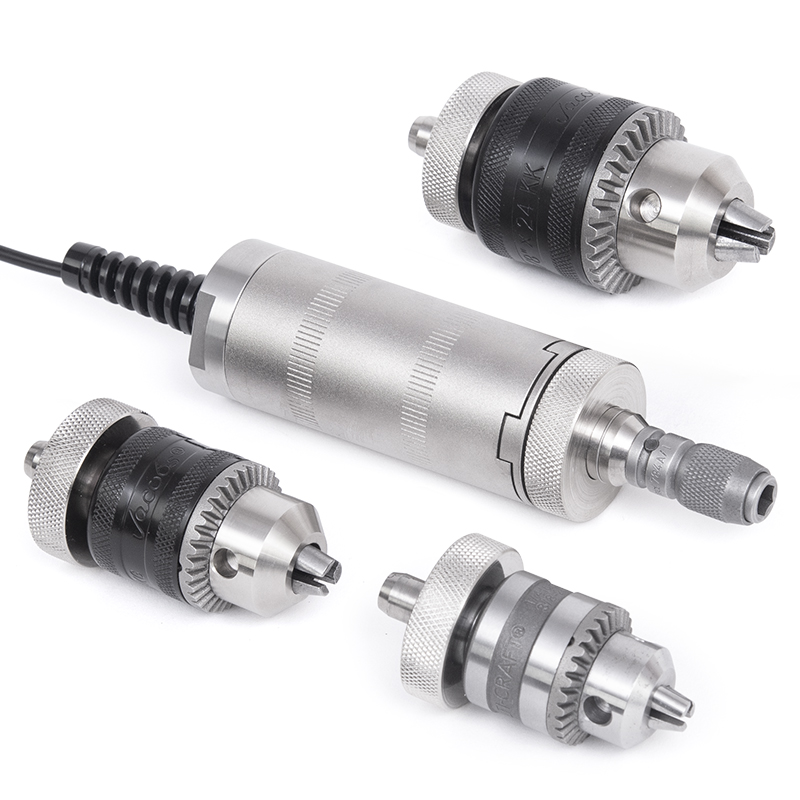

Mark-10 MR51-20Z Universal Torque Sensor (20 ozFin / 140 Nmm / 1400 gFcm / 14 kgFmm / 14 Ncm)

Capacity x Resolution

With Models M7I & M5I indicators

lbFin: -

ozFin: 20 x 0.01

lbFft: -

gFcm: 1400 x 1

kgFmm: 14 x 0.01

Nmm: 140 x 0.1

Ncm: 14 x 0.01

Nm: -

With Model M3I indicator

lbFin: -

ozFin: 20 x 0.02

kgFmm: 14 x 0.01

Ncm: 14 x 0.01

Accuracy: ±0.2% of full scale + indicator

Chuck opening range:

G1016-1: 0.028 - 0.25 in [0.7 - 6.3 mm]

G1016-2: 0.062 - 0.375 in [1.6 - 9.5 mm]

G1016-3: 0.078 - 0.5 in [2.0 - 12.7 mm]

G1017: 0.25 in [6.3 mm] hex

Safe overload: MR51-10Z - MR51-50Z: 300% of full scale; MR51-12 - MR51-100: 150% of full scale

Weight: From 1.4 lb [0.6 kg]

Datasheet
