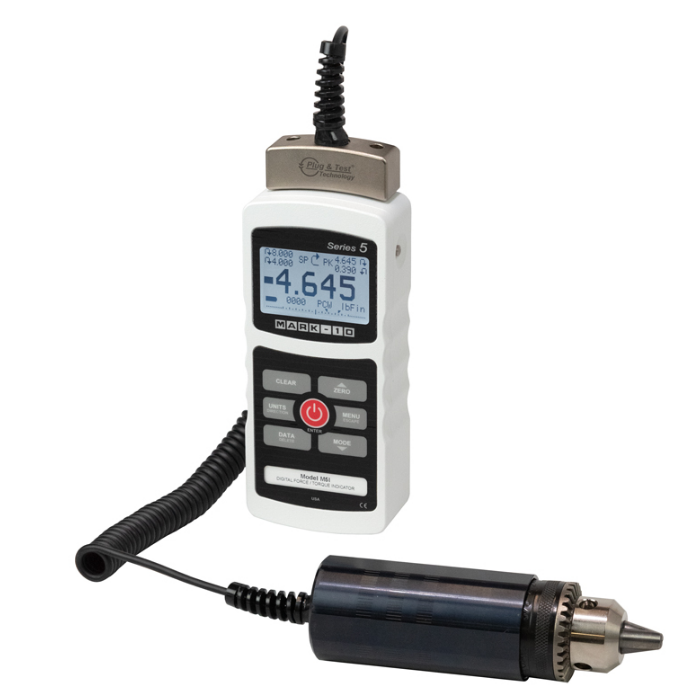

Type: Advanced force / torque indicator, 220V, Australian Plug
Accuracy: ±0.1% of full scale + sensor
Sampling Rate: 7.000 Hz
Power:
AC adapter: 100-240VAC, 50-60 Hz, 0.3 A
Battery: Rechargeable 8.4V NiMH
Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage
Battery life: Backlight on / off: up to 7 / 24 hours of continuous use
Outputs:
USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±2% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines.
Configurable settings:
Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones,
audio alarms, backlight, calibration
Weight: 0.7 lb [0.3 kg]
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
