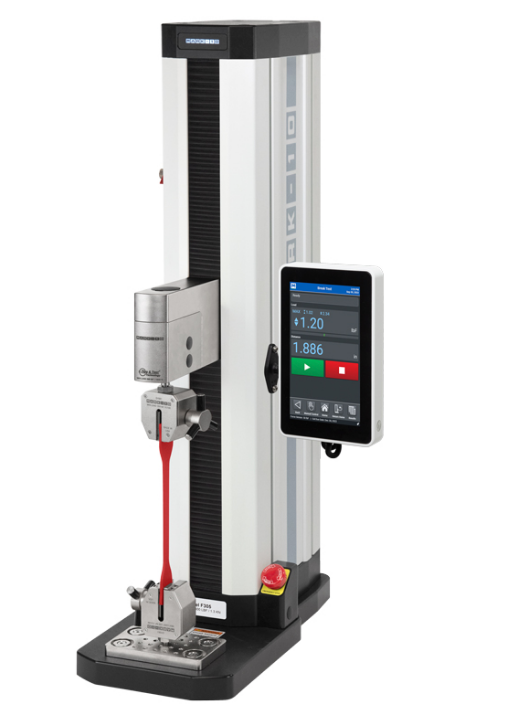

Mark-10 F505-EM Digital Force Testers (500 lbF[2.2 kN])

Load capacity: 500 lbF[2.2 kN]

Maximum travel: 18.0 in[457 mm]

Standard speed range: 0.5 - 13 in/min[13 - 330 mm/min]

Optional speed range: 0.02 - 45 in/min[0.5 - 1100 mm/min]

Peak sampling rate: 5.000 Hz

Data acquisition rate: 100 Hz (requires Graphing & Reporting option)

Speed accuracy: ±0.2% of setting, virtually no variation with load

Position accuracy: ±0.006 in [0.15 mm], at any load or position

Distance resolution: 0.001 in [0.02 mm]

Limit switch repeatability: ±0.001 in [0.03 mm]

Overload protection: Motor stops at 120% of full scale of the force sensor

Power: Universal input 100-240 VAC, 50/60 Hz, 120W

Fuse type: 2.5 A, 250V, 3AG, SLO BLO

Weight: 70 lb[32 kg]
