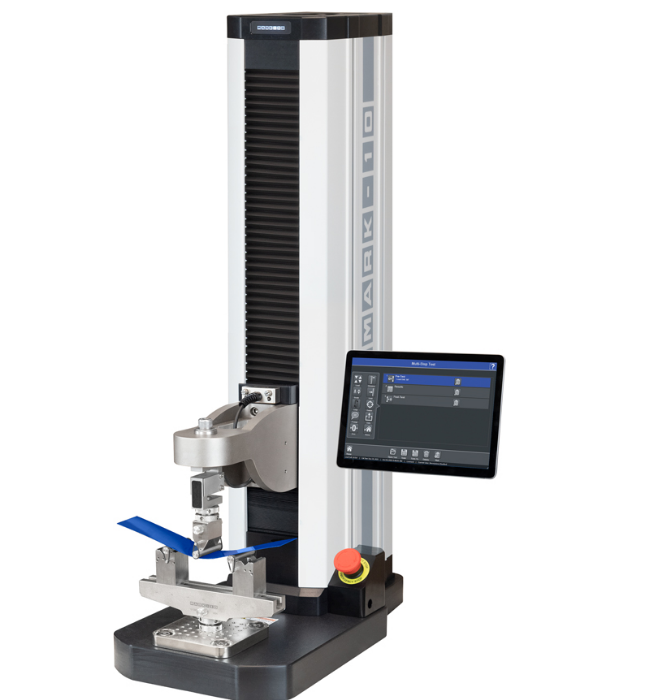

Mark-10 F1505S Digital Force Testers (1500 lbF[6.7 kN])

Load capacity: 1500 lbF[6.7 kN]

Maximum travel: 14.2 in[360 mm]

Speed range: 0.001 - 70 in/min[0.02 - 1800 mm/min]

Load sampling rate: 20.000 Hz

Data acquisition rate: 1.000 Hz

Speed accuracy: ±0.2% of setting

Distance accuracy: ±0.002 in [0.05 mm]

Distance resolution: 0.0005 in / 0.01 mm

Limit switch repeatability: ±0.001 in / 0.03 mm

Overload protection: Motor stops at 120% of full scale of the force sensor

Power: Universal input 100-240 VAC, 50/60 Hz, 450W

Fuse type: 4A, 3AG, SLO BLO

Weight: 157 lb[71 kg]
