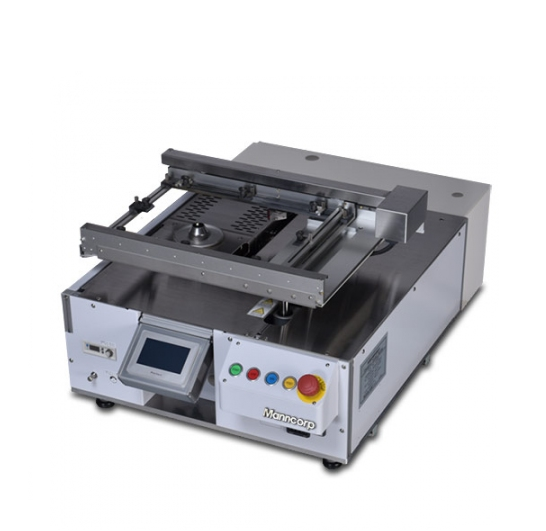

Manufacturer: Manncorp - USA
Model: ULTIMA TRZ
Origin: China
Warranty: 12 months
PCB Holder and X-, Y-, Z-Axis Drive Mechanism
Maximum PCB Size: 330 mm x 250 mm (13" x 10")
Minimum PCB Size: 50 mm x 50 mm (2" x 2")
PCB Thickness: 0.8 mm - 2.0 mm (.032" - .080")
Maximum PCB Weight: 2 kg (4.4 lbs.) including components; 4 kg (8.8 lbs.) capacity optional
Component Lead Length: 3 mm (0.12") recommended maximum
Component Height (Top Side): 50 mm (2") maximum above PCB top side
Component Height (Bottom Side): 25 mm max
PCB Edge Clearance: 3 mm (0.12") for components; 5 mm (0.20") for solder pad edge
Solder Wave and Bath
Solder Types: Both Lead-Free and Conventional Sn/Pb Solders; Second Separate Solder Pot Recommended When Using Both Types
Wave Diameter: Nozzle Dependent Based on Inner Diameter (2.5, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0, 12.0, 14.0, 16.0, 20.0 mm Inner Diameter Nozzles Available)
Solder Wave Height: 4 mm (0.16") maximum
Solder Wave Height Adjustment: Controlled by Pump Motor RPM
Solder Wave Height Accuracy: ±0.3 mm (±0.012")
Solder Capacity: Approx. 16 kg (35 lbs.)
Solder Melting Method: Indirect Heating with Cartridge Heaters
Solder Temperature: Ambient to 300 °C
Solder Melt Time at Startup: Approx. 30 min.
Controller
Program Storage: Internal Memory for 50 Files, 200 Steps Per File; Unlimited Off-Line Storage with PC Connected via USB Port and Windowsª-Based Software
User Interface: Touch Screen LCD Display Base; Windows®-Based Software for Off-Line Programming and Data Transfer
Utilities/Facilities Requirements
Machine Dimensions: 940 mm L x 620 mm W x 442 mm H (37" x 24.5" x 17.4")
Machine Weight: 120 kg (264.5 lbs.); Including 16 kg (35 lb.) Solder Capacity
Power Source: 208-240 VAC, Single Phase, 50/60 Hz, 4 KVA
Nitrogen Supply: 0.4 - 0.5 MPa (60-75 psi); 25 l/min (0.9 CFM)
