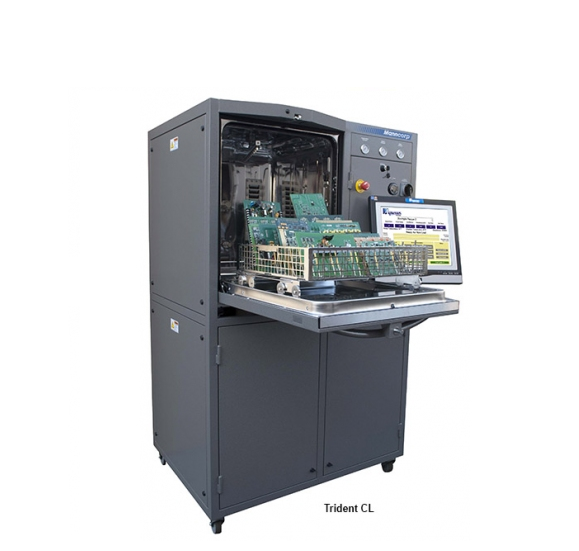

Manncorp Trident CLO Zero-Discharge PCB Cleaner

Manufacturer: Manncorp - USA

Model: Trident CLO

Origin: China

Warranty: 12 months

Dimensions: 42 ¼” W x 47 ¾” D x 70" H

Weight: 791 lbs

Power Requirements: 208-240 VAC 40 amps 3Ø; 400 VAC 31 amps 3Ø

Water Input: 3/4" NPT

Drain: N/A

Air Exhaust: 6" (static)

No-Clean Flux Removal: No

Water Soluble Flux Removal: Yes

Rosin Flux Removal: No

Alloy Compatibility: Lead & lead-free

Average Cycle Time: 30 minutes

Estimated Assemblies Per Hour Per Chamber: 3" x 10" - 144/hr; 4" x 5" - 192/hr; 8" x 10" - 44/hr; 20" x 20" - 24/hr

Built-In Cleanliness Testing: Standard

Anti-Shadowing Technology: Oscillating board rack and asymmetrical nozzles

Fluid-Delivery Technology: Twenty 15° stainless steel adjustable nozzles

Built-In Cleanliness Testing: Standard

Discharge Configuration: Closed-loop (no drain)

Closed-Loop Wash Solution Recycler: Standard

SPC Data Logging with On-Screen Viewing: Standard

SPC Data USB Export: Standard

SPC Remote Viewing: Standard

Heated Drying System: Standard

Control System: Windows® 7 computer

Operator Interface: Touchscreen Interface

ESD Ground Point: Standard
