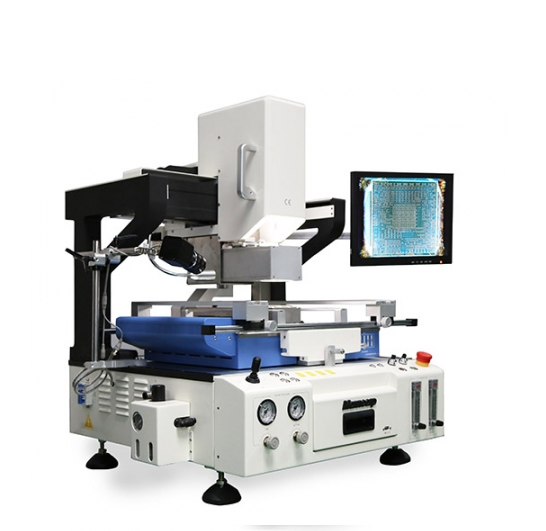

Manncorp RW1500 SMT/BGA Rework Station

Manufacturer: Manncorp - USA

Model: RW1500

Origin: China

Warranty: 12 months

PCB Specifications

PCB Size (Minimum): 0.6" x 0.79"(15x20 mm)

PCB Size (Maximum): 18.5" x 21.6" (470x550 mm)

Component Specifications

Component Size: 01005 Chips to 80 mm x 80 mm

Heating System

IR Under-Heater: Max. Heat Area - 300 mm x 460 mm (5000 W)

Component Heater (Top Side): Hot Air (1200 W)

Component Heater (Bott. Side): Hot Air (1200 W)

Temperature Control: K-Type Thermocouple; Closed Loop PID

Utility Specifications / Facility Requirements

Main Power Source: 220 V, 50/60 Hz

Total Power Consumption: 6.6 KW Max.

Machine Dimensions: 760 mm x 850 mm x 950 mm (not including LCD display) (30" x 33.5" x 37.4")

Net Weight: Approx. 309 lbs (140 kg)
